TOPDON will donate 10% of your order to St. Jude Children’s Research Hospital®

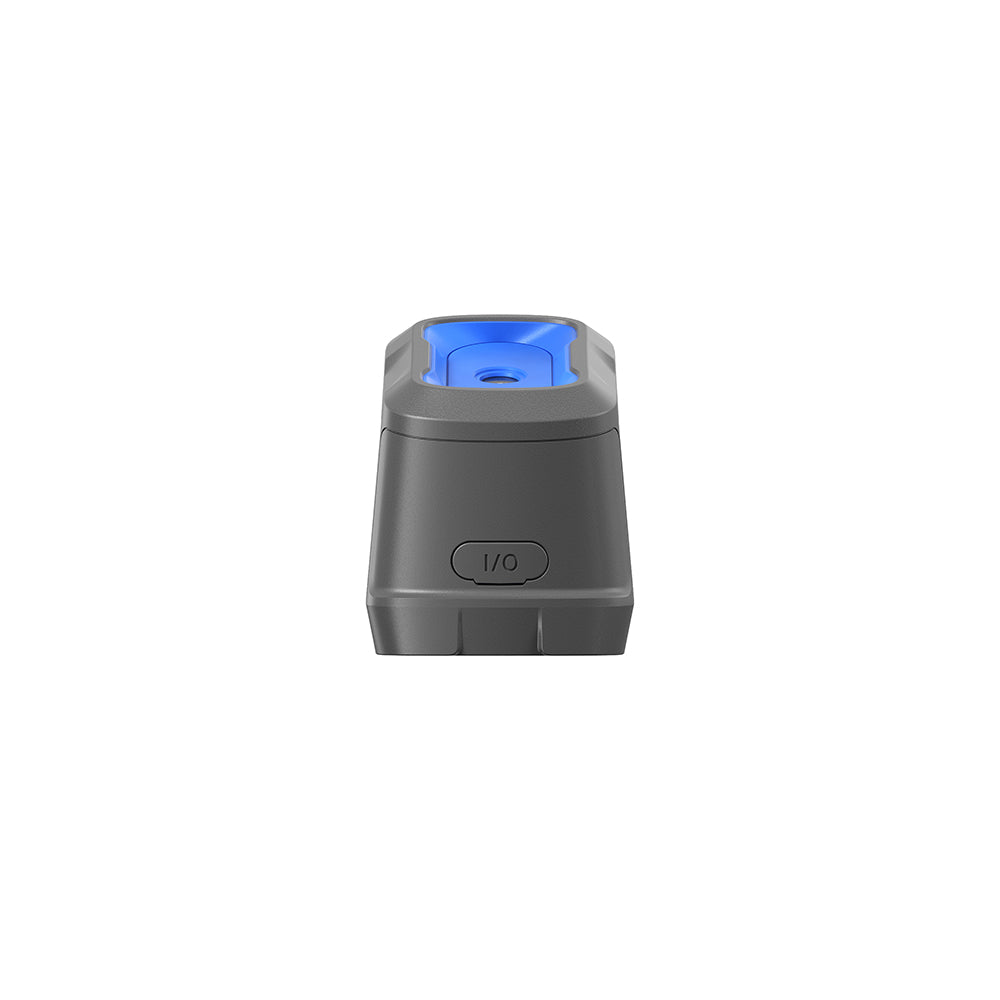

TOPDON TC004 SE thermal imaging camera with blue and gray grip displaying temperature readings on screen.

TC004 SE

Regular price $299.00
Regular price Sale price $299.00
Sale Sold out

DIY Thermal Imaging Camera

Step up your diagnostic game with the TC004 SE - a reliable thermal camera designed for locating and tackling industrial, electrical, building, HVAC, and automotive problems with confidence. With an impressive battery life of up to 21 hours (at low brightness), the camera ensures all-day use, so you’re always ready when you need it. Its ability to record videos allows you to monitor maintenance history and reassure your customers that systems are functioning safely.

  • Have questions? Ask an expert
View full details
Skip to product information
1 of 16

Features

  • All Day Battery Life
  • Video Capture
  • Built in 32GB Storage
  • 4x Digital Zoom
  • PC Image Analysis
Discover all product features below

Warranty & Updates

  • 1 Year Warranty

Resources

  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Thermal Hardware
System
Operating System
Battery Capacity
Display Screen
Operating Voltage
Charging Time
Battery Life
ROM
LED Flashlight
Thermal Imaging
Calibration Temperature Measurement Distance
Identification Distance
Recognition Distance
Detection Distance
Measurement Accuracy
Infrared Light Resolution
Focal Range
FOV
Spectral Range
NETD
Temperature Resolution
Frame Rate
AI Algorithm
Image Algorithm
Thermal Functions
Measurement Range
Professional Function
Digital Zoom
Image Modes
Measuring Modes
Video Recording
Video Transfer via USB
Wi-Fi
PC-Based Analysis Software
Visible Light Camera Lens
Pseudo Color Bar
High/low temperature alarms
Automatic Power-off Time
Temperature Units
Physical & Environmental
Working Temperature
AC Cable Length
Dimensions
Warranty
Operating Temperature
Tripod Screw Hole
Drop, Impact, and Vibration
IP Rating
Certifications
Gross Weight (g)
Device Weight (g)
Package Size (mm)
Cycle Life
Weight
Storage Temperature
Housing Protection
Standard Cable Length
Optional Cable Length
Enclosure
Cable
Altitude
Operating Altitude
Cable Length
Package Dimensions
Certification
Languages
Software Languages
User Manual Languages
Languages
Multi-Lingual Interface (22+ Languages)
Supported Languages for APK
Updates
Updates
Upgrade Method
Subscription
Renewal
Functional Expansion

Linux
Standalone use/Windows devices
5300mAh
2.8 inch, 320x240 screen
5V
4h
16h (High brightness) 21h (Low brightness)
32 GB

0.2m~4m
0.1~40m
40~80m
80~320m
±2°C or ±2%
256x192
3.2mm
56°×42°
8 – 14μm
<40mK
0.1℃
25Hz

-20 to 450 °C (-4 to 842℉)
NA
1x/2x/4x
Thermal Imaging
Center spot/hot spot/cold spot
Supports image analysis with PC
10 colors (iron red, white hot, black hot, arctic, rainbow, red hot, medical, jungle, golden red, shimmer, aureate)
5 mins, 10 mins, 20 mins, Off
Celsius, Fahrenheit, Kelvin





-10°C to +50°C
2.0m, impact 25g (IEC 60068-2-27), vibration 2.5g (IEC60068-2-6)
IP54
UN38.3/DGM/CE/FCC/RoHS/UKCA
1100
520
280*165*120
















13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)



Connect to PC for updates




All Day Battery Life

It offers up to 21 hours of continuous use at the lowest screen brightness and 16 hours at the highest screen brightness, giving you peace of mind during extended tasks. Imagine working just 3 hours a day—this means you can go a whole week without recharging.

Video Capture

Easily record videos during inspections, enabling quick and accurate documentation of your findings for later review.

Built in 32GB Storage

With 32GB built-in eMMC storage, you can save up to 160,000 high-quality thermal images, ensuring ample space to document and review inspection findings during long-term projects.

4x Digital Zoom

Effortlessly switch between 1x, 2x, and 4x digital zoom to capture every detail, whether inspecting intricate components up close or surveying larger areas from a distance.

PC Image Analysis

Easily project thermal images to your PC for detailed temperature analysis. Compare temp differences, highlight hot and cold spots, and analyze thermal images in flexible ways (dot, line, plane).

256x192 Resolution, 25Hz Refresh Rate

A 256x192 IR resolution and 25Hz refresh rate provide fluid & clear thermal visuals to help you quickly spot and analyze issues in power, electrical, or building inspections.

1/4-20 Screw Mount

With a built-in 1/4-20 screw hole, easily mount the device on a tripod for stable, hands-free monitoring during extended use - ideal for equipment checks and lab tests.

Built-in LED Light

The dual LED flashlight lets you work in low-light conditions and inspect hard-to-reach areas without carrying additional equipment.
