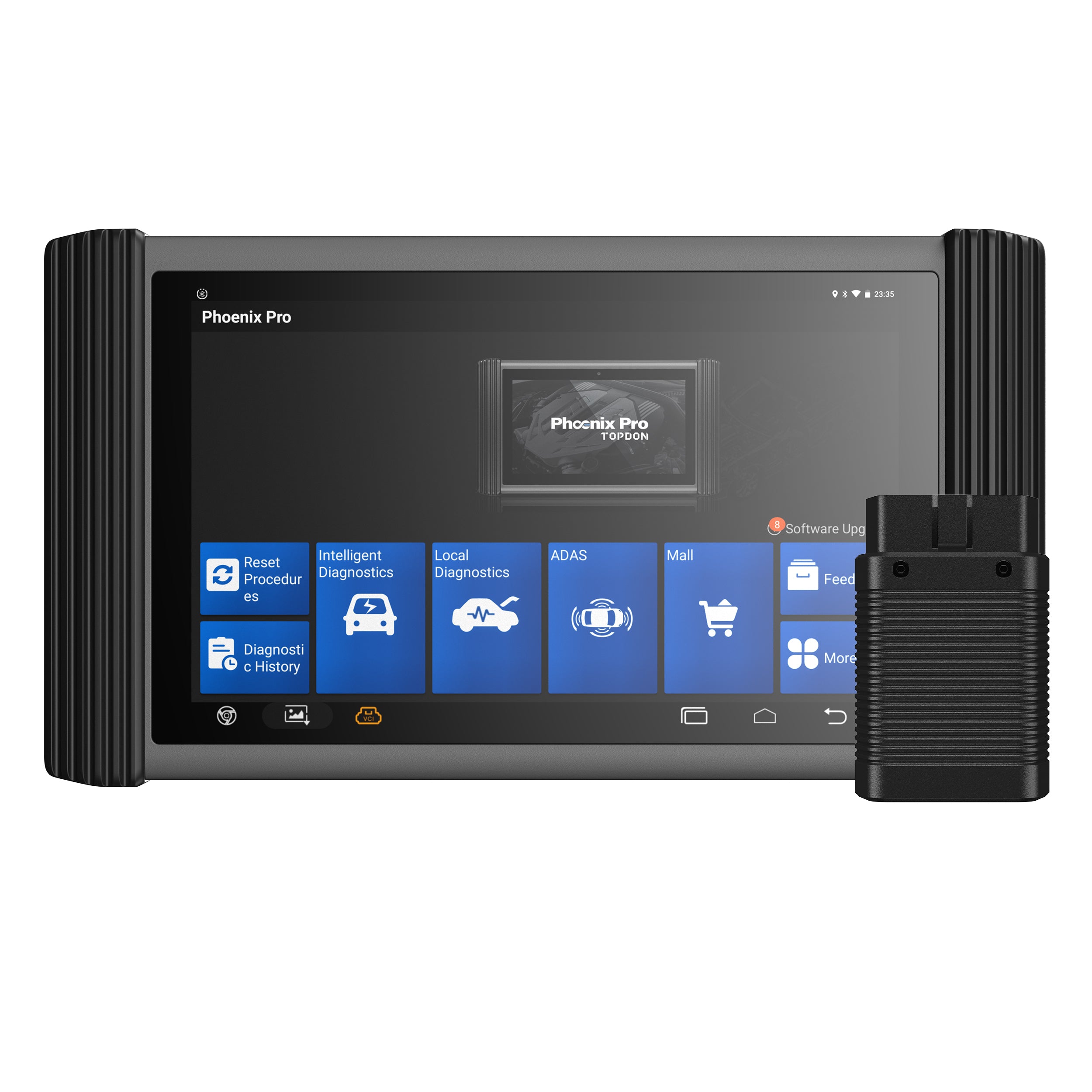

Phoenix Pro

$1,499.00 $1,999.00 You Save 25% ( $500.00 )

The Phoenix Pro is an advanced OE-level diagnostic scanner that provides in-depth looks into a car's automotive systems. This innovative and powerful device features online programming & coding, ECU programming, and active tests. It includes 22 of the most essential service functions, such as Oil, SAS, TPMS and EPB Resets, Throttle Matching, Gear Learn, Immobilizer coding, Injector Coding, and much more. With comprehensive worldwide coverage, including over 120 models, the Phoenix Pro expands any shop's ability to work on even more vehicles. Its robust diagnostic power and vast capabilities will diminish the downtime, propelling your business forward.

FEATURES

Exceptional OE-Level functionality from comprehensive OBD2 diagnostics & services to advanced ECU coding and programming
Interactive Data Logging sessions enable direct contact with professional tech support for first-hand troubleshooting of diagnostic bugs and errors
12 inch HD capacitive touch screen

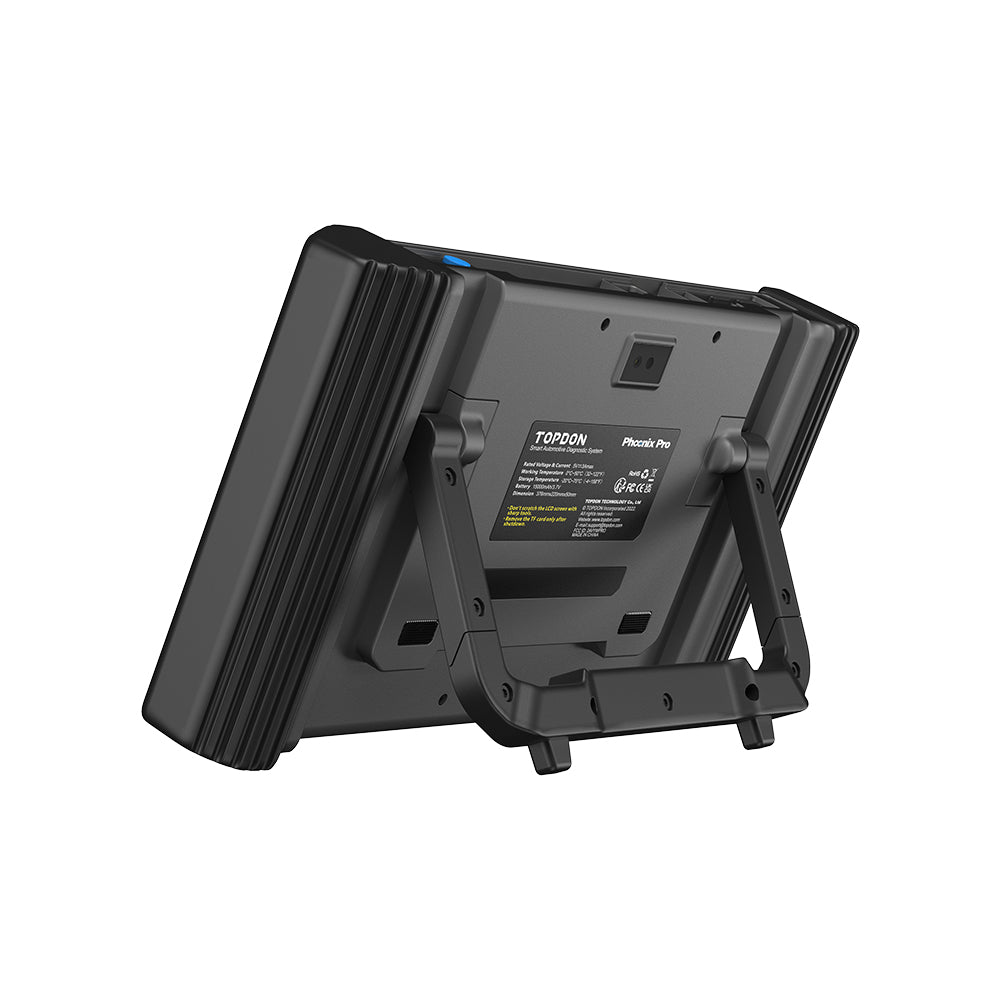

Built for daily use in a shop environment with rubberized outer protection and rugged internal housing.
USA-based tech support with industry-leading 1-hour callback promise.
Special functions including • OIL RESET • SAS RESET • EPB RESET • IMMOBILIZER • INJECTOR CODING • SUNROOF RESET • GEARBOX • EGR ADAPTION • DPF RESET • ABS BLEEDING • TPMS RESET • BMS RESET • AFS RESET • SUSPENSION RESET • GEAR LEARN • THROTTLE MATCHING
Module replacement
Module Programming
Personalization functions
Automatic power-off to preserve battery life
Modular design allows for future capability expansions
Excellent up-close visual inspections in confined areas, such as engine cylinders and minor part inspections

EXTENSIVE COVERAGE: This exceptional OE-Level functionality diagnostic scanner is available for over 80 1996 US-based, 2000 European-based, and newer OBDII protocol vehicles with full OBDII functions, 11 unique services, and complete systems diagnostics

TECHNICAL SUPPORT: This diagnostic tool supports first-hand troubleshooting of diagnostic bugs and errors. One-stop multitasking design for ideal management of workshop operations to keep all data files, customer information, and vehicle records well organized

SPECIFICATIONS

Operating System: Android 5.1.1

Processor: 8-Core 2.0GHz processor

Memory: 2GB RAM & 64GB Embedded Memory

Display: 12” Display with 1920x1200 resolution and capacitive touch screen

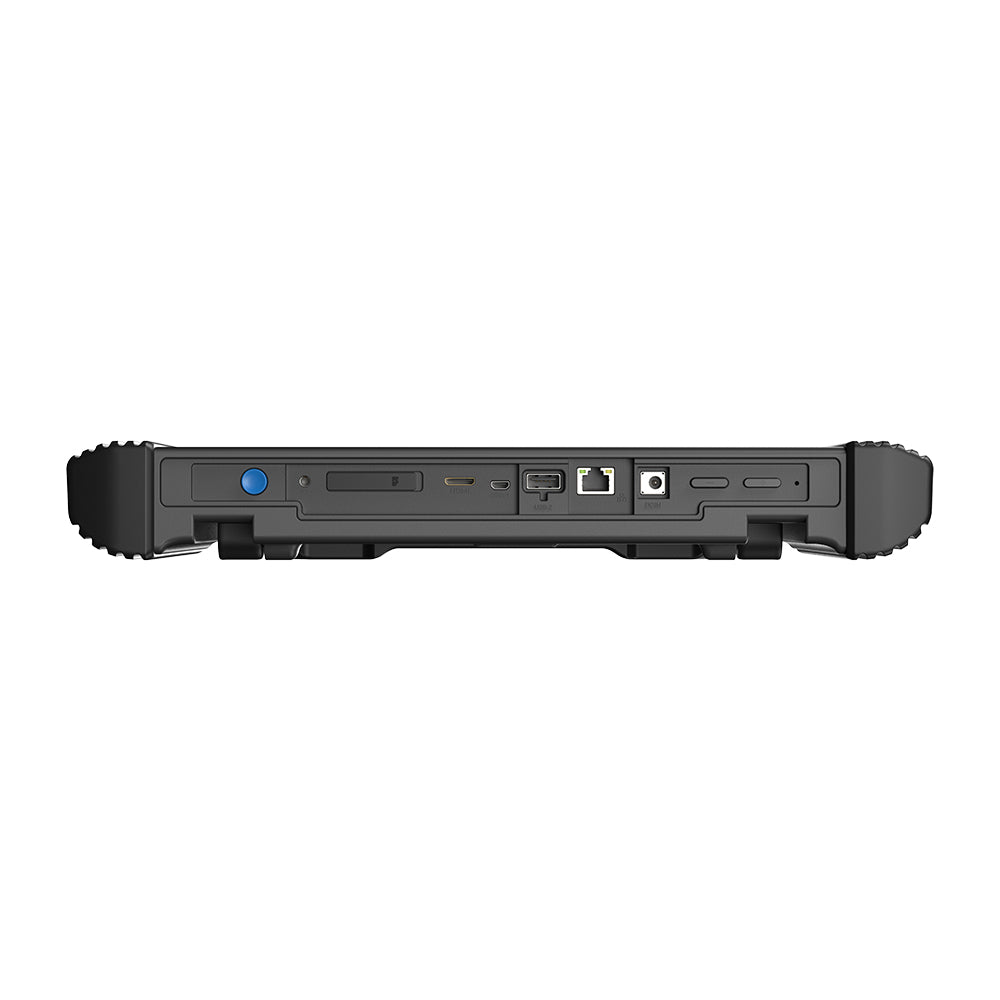

Connectivity: 802.11a/b/g/n/ac WIFI, 2.0 3Mbs Bluetooth, RJ45 Ethernet Connection, 2.0 USB, HDMI 1.4a, SD Card (supports up to 128GB)

Camera: Rear: 8.0 Megapixels, Autofocus with Flashlight, Front: 2.0 Megapixels

Sensors: Gravity Accelerometer

Audio Input/Output: Microphone, Dual Speakers, 3.5mm stereo/standard headset jack

Power and Battery: 3.7V/15000mAH Lithium-polymer battery

Input Voltage: DC/5V/3A

Power Consumption: Max 20W

Operating Temperature: 14℉ - 131℉ ( 10°C - 55°C)

Dimensions: 14.80” x 8.6” x 1.96”

Weight: 4.62 LBS.

PACKAGE LIST

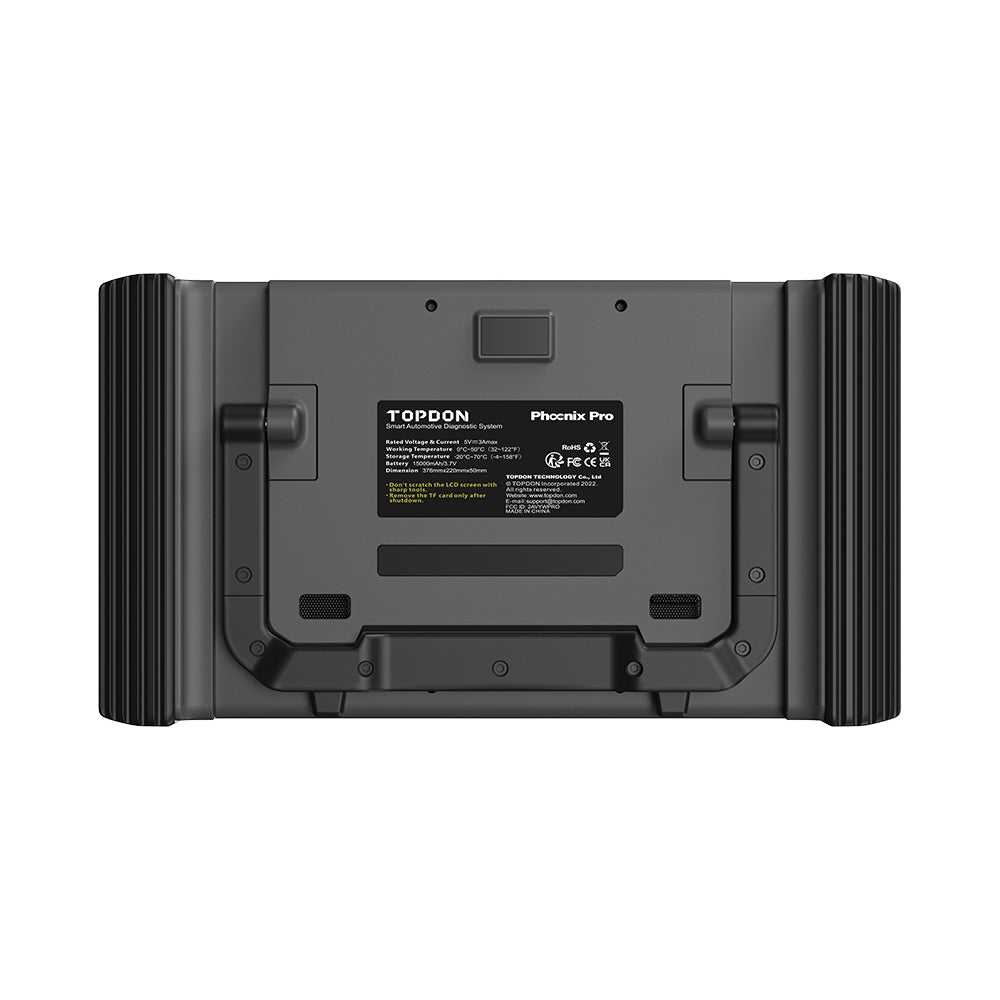

1 - Phoenix Pro™ Tablet

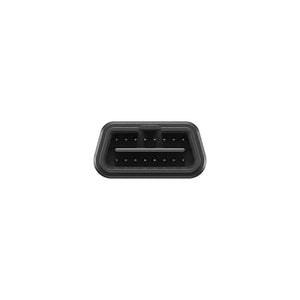

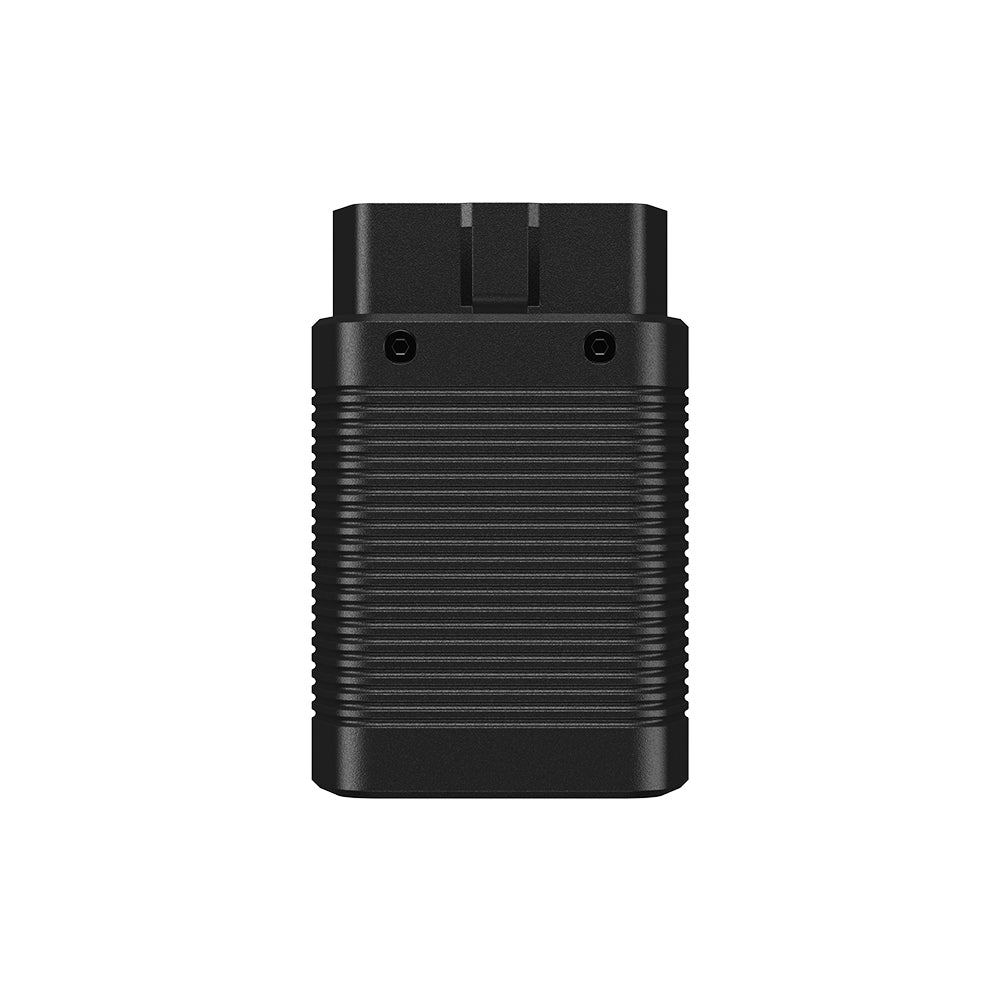

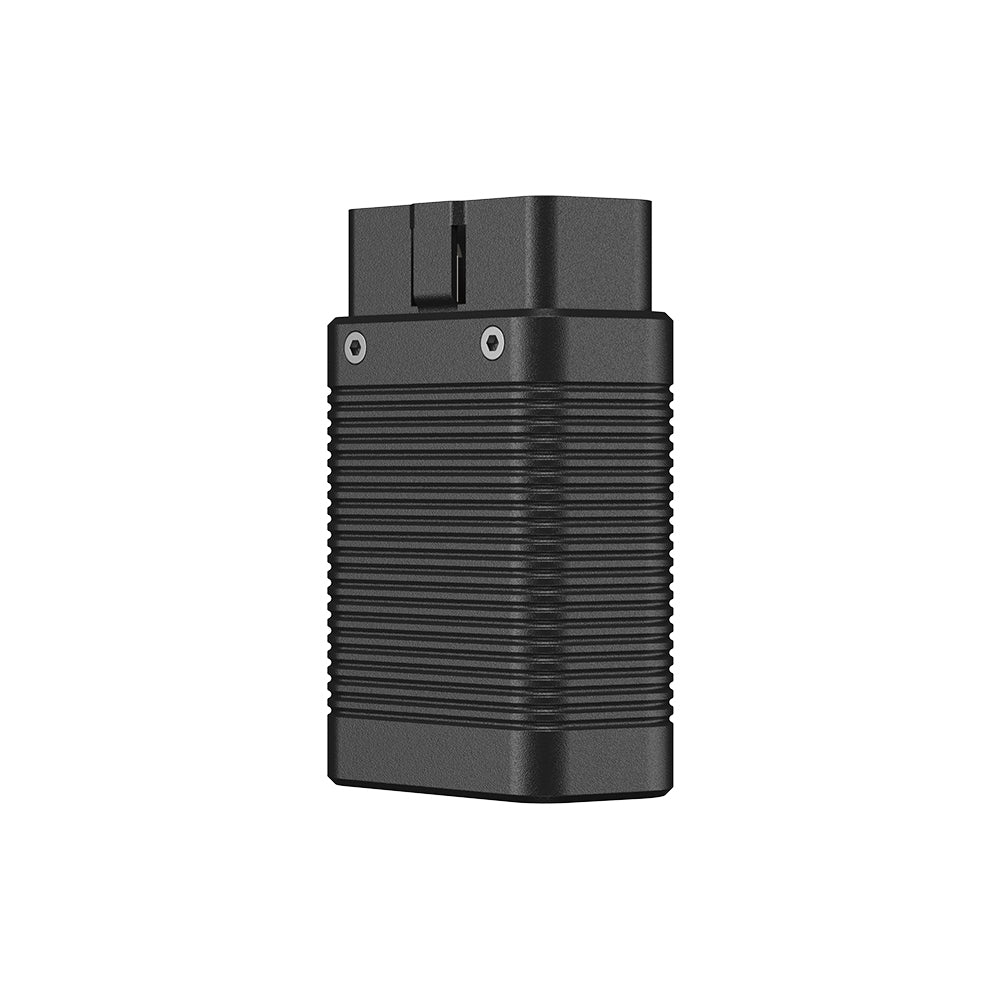

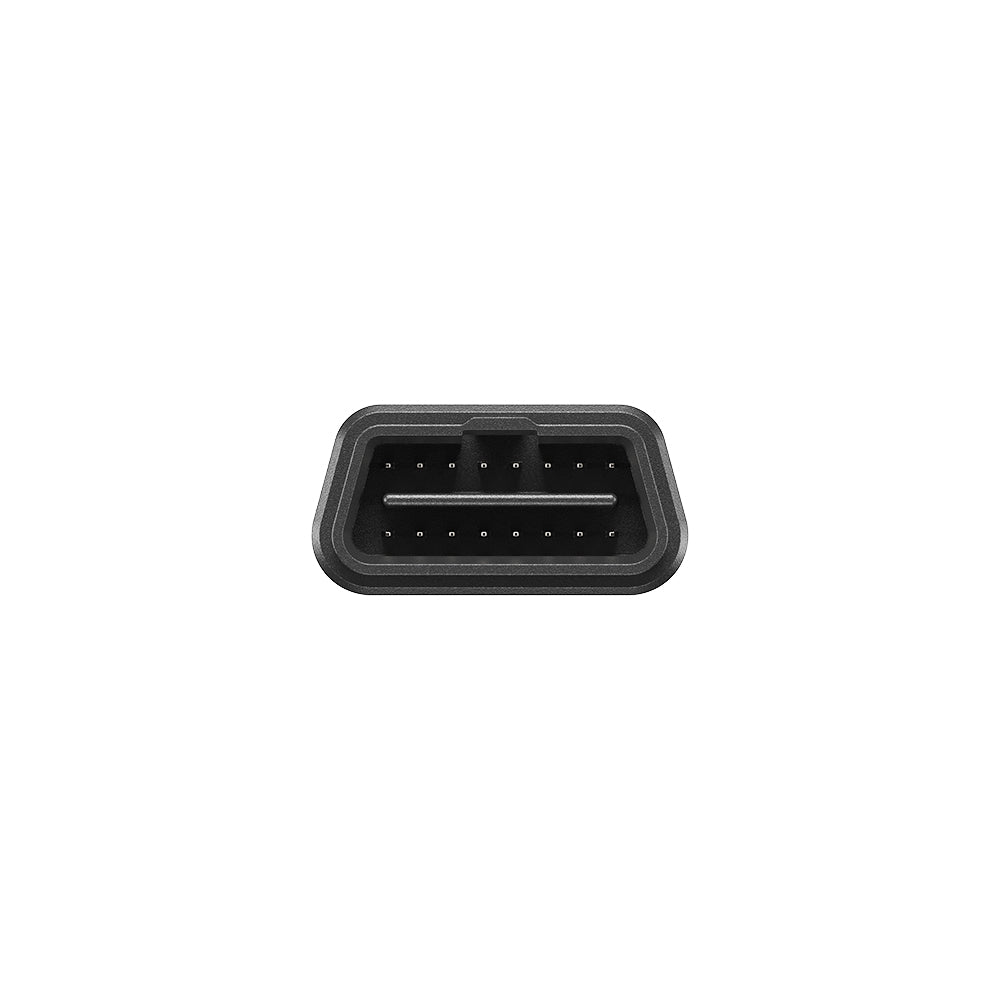

1 - VCI Connector

1 - OBDII Extension Cable

1 - Power Adapter

1 - USB Cable

1 - OBDI Adapter

1 - Cigarette Lighter Charger

1 - Battery Clamps Cable

1 - Password Envelope

1 - Adapter Cable Kit

Adapters of: AUDI-4 BENZ-14 BENZ-38 BMW-20 CHRYSLER-6 DAEWOO-12 DAIHATSU-4 FIAT-3 FORD-6+1 GEELY-22 GM/VAZ-12 HONDA-3 KIA-20 MAZDA-17 MITSUBISHI/HYUNDAI-12+16 NISSAN-14+16 SSANGYONG-14 SSANGYONG-20 SUBARU-9 SUZUKI-3 TOYOTA-17 TOYOTA-22 UNIVERSAL-3

WARRANTY & UPDATES

Two Year Warranty
Two Year of Updates

SHIPPING

Free Ground Shipping in the USA

RETURN & REFUND POLICY

30-Day Money-Back Guarantee
