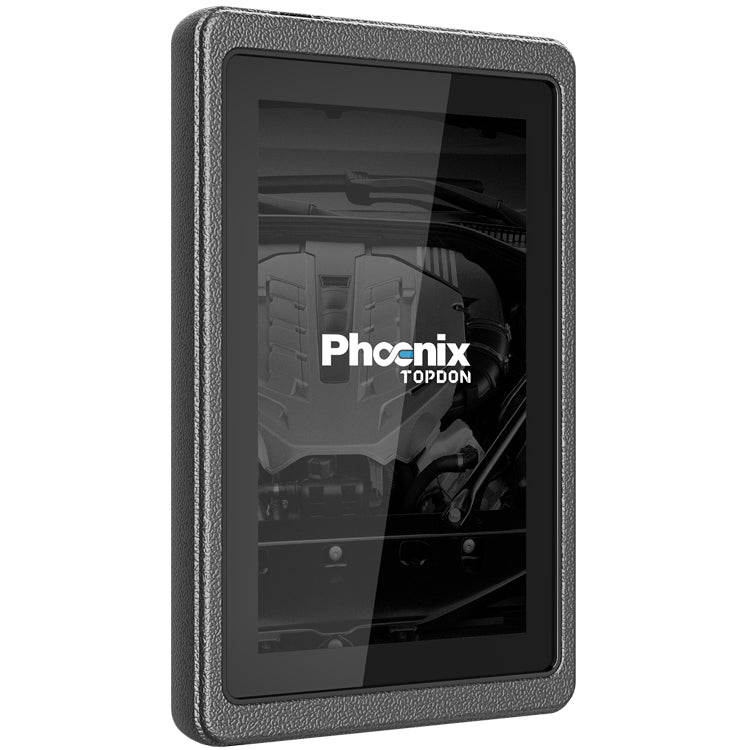

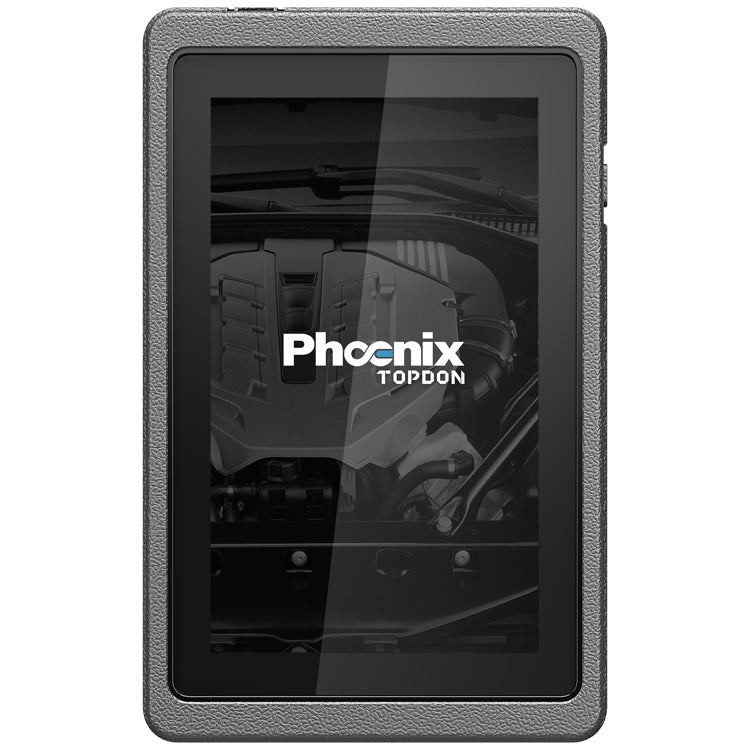

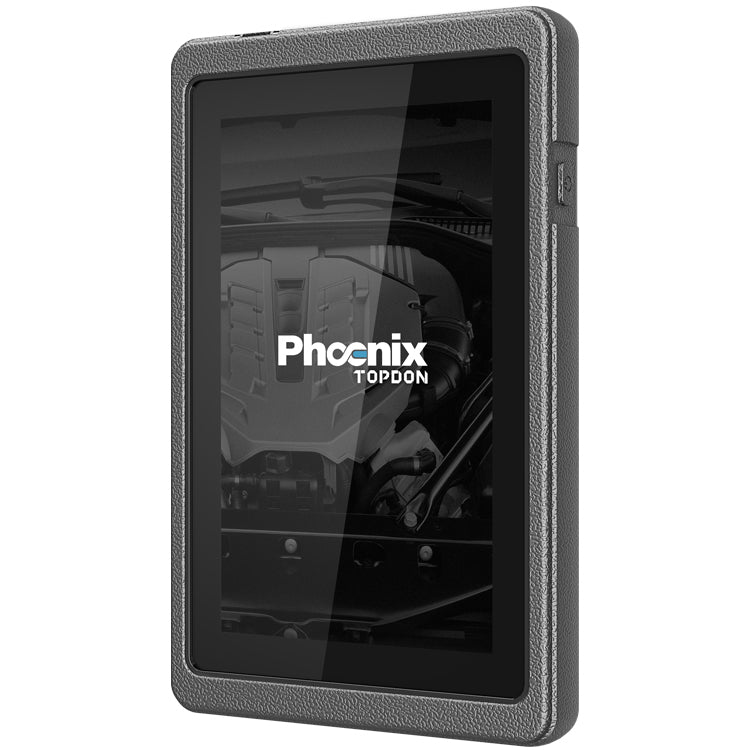

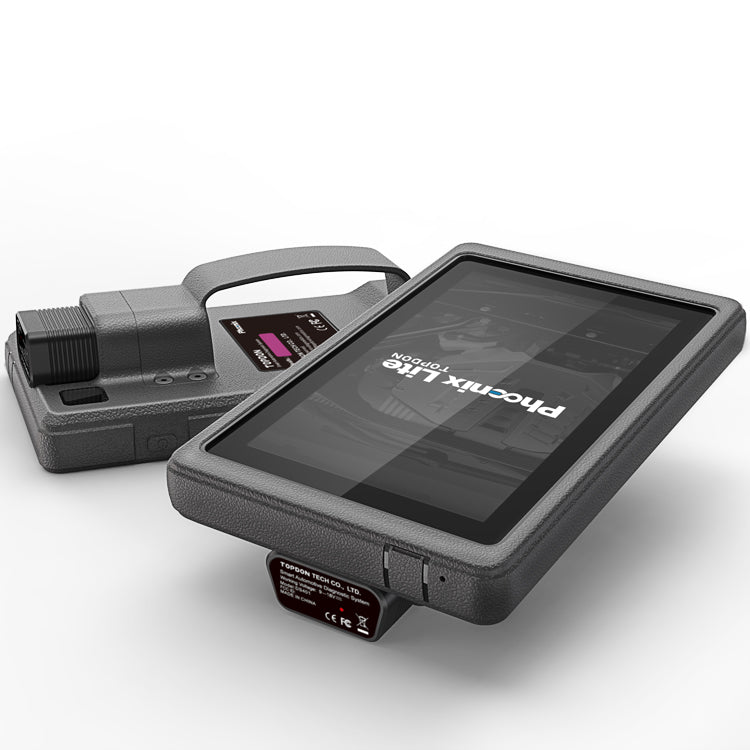

Phoenix Lite - Compact Advanced-Level professional diagnostic tool

The Phoenix Lite is an advanced-level, fully capable, professional diagnostic tool that blends dealer level diagnostic software with high-quality small frame hardware. The Phoenix Lite provides the user with the ability to perform advanced functions like module coding, bi-directional testing, data display and recording, data graphing, and more. Designed especially for advanced-level technicians wanting to purchase a diagnostic tool or the budget-conscious shop that needs high-level functionality at an affordable price, the Phoenix Lite is the best blend of functionality and affordability.

  • The TOPDON Phoenix Lite includes full system vehicle trouble diagnosis for more than 108 US, Asian, and European vehicle makes and models
  • The Phoenix Lite also features in-depth vehicle system coverage for ALL electronic systems you'll find on today’s modern automobiles
  • This OBDII diagnostic scanner comes equipped with compact size and lightweight feature for easy carrying, and user-friendly interface specially designed for the Android platform for pleasant user experience
  • The OBDII adapter is wireless, allowing you to diagnose a vehicle from anywhere easily
  • Reset feature allows quick access to common procedures like oil service reset, steering angle sensor calibrations, DPF regen, and more
  • The tool itself is in rugged housing designed to withstand drops and damages
  • This Android based 8-inch touchscreen tablet is Bluetooth & Wi-Fi enabled
  • Includes remote diagnostic service, and it boasts a 1.3 GHz quad-core processor for lightning-fast car diagnostics

Phoenix Info Sheet

Phoenix Line Comparison Chart



Display Screen: 7-inch HD High-Resolution LCD (touchscreen)

Camera: 5 MP rear-facing camera

OS: Android 7.0

Processor: Quad-core 1.3 GHz, with 2GB of processor memory and 16GB of onboard storage

Camera: Rear 5.0 Megapixel

Battery: 3000mAh rechargeable lithium-polymer battery

Connectivity: Bluetooth 4.1, WLAN 802.11b, g,n

Working Voltage: 9-18v

Operating Temperature: 14°F-122°F

Bluetooth Range: Within 109 Feet

Dimensions: 16.14” x 4.35” x 12.2"


1-Phoenix Lite Tablet

1-VCI Module

1-Battery Clamps Cable

1-Password Envelope

1-USB Power Adapter

1-USB Cable

1-User Manual


One Year Warranty

Two Year of Updates


Free Ground Shipping in the USA


30-Day Money-Back Guarantee
