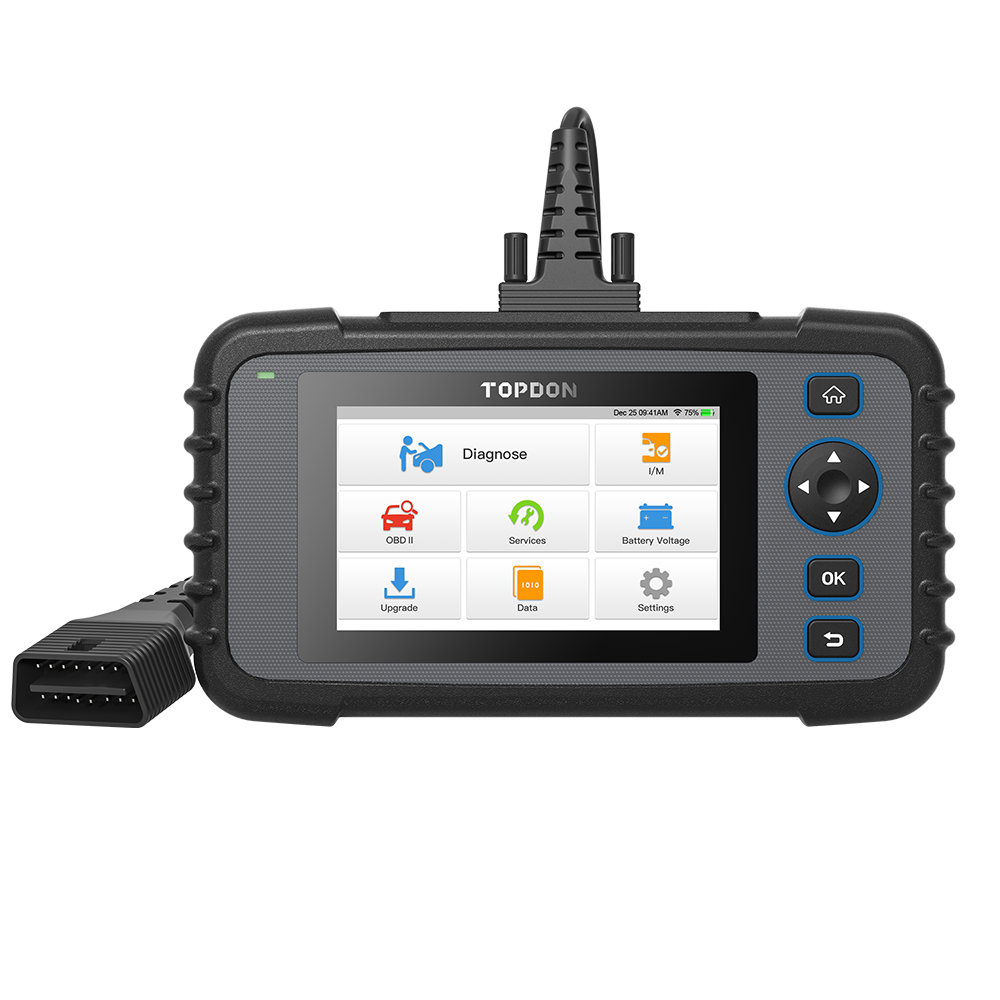

ArtiDiag600 - Android based OBD II Diagnostic Scan Tool with Service Resets

The ArtiDiag 600 is an OE-level scanner that provides essential information on US, Euro, and Asian cars released after 1996. The vehicle history function eliminates guesswork when adjusting programming by recovering previous settings to fix computer tech issues faster and easier. Best of all, its AutoVIN feature allows for fast vehicle identification and battery voltage displays to diagnose quickly and save you time and money when working on projects.


Features

  • Four System Diagnostics - Engine, Transmission, ABS, and SRS Systems
  • Diagnostics for 42 Vehicle Makes
  • Access to ECU Information
  • Read DTCs
  • Clear DTCs
  • Display Live Data Stream
  • One-touch AutoVIN Technology: automatically identify the vehicle, and match the proper diagnostic software.
  • Vehicle History function: offer direct access to the previous diagnostic procedure
  • Automatically Generated Diagnostic Reports can be shared via email
  • Battery Voltage Monitor: Displays vehicle battery voltage in real-time
  • One-click wireless update via Wi-Fi
  • DTC Look-up Library for detailed DTC explanation
  • Feedback function for online technical assistance
  • Graph and Merge Live Data Stream for easy analysis
  • 5 Maintenance Services
    • BRAKE RESET - Help to replace and reset the brake pad
    • OIL RESET - Reset the oil service lamp and maintenance interval  after changing the engine oil
    • SAS RESET - Reset the steering angle to zero
    • ELEC. THROTTLE RELEARN - Initialize the throttle actuators to the default state
    • TPMS RESET - Reset the tire pressure

OBDII Functions

  • Read DTCs
  • Clear DTCs
  • Live Data
  • I/M Readiness Monitor Status
  • View Freeze Frame Data
  • O2 Sensor Test
  • On-board Monitor Test
  • EVAP Test (Mode$8)
  • Read Vehicle Information

Specifications

  • Display: LCD 5-Inch, 1280*720 dpi
  • Operating system: Android 7.1
  • Operating voltage: 9~18V
  • Storage Temperature: -20℃~70℃ (-4℉~158℉)
  • Working Temperature: -10℃~50℃ (14℉~122℉)
  • Dimension: 232*126*34 mm (9.1*5.0*1.3 inch)
  • Package size: 272*218*80 mm (10.70*8.58*3.15 inch)
  • Length: 185 mm(7.28 inch)
  • Net Weight: 565g ( 19.92oz)
  • Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian

Package List

  • ArtiDiag600
  • Diagnostic Cable
  • Charging Cable
  • Quickstart Guide
  • User's Manual
  • Carrying Bag
