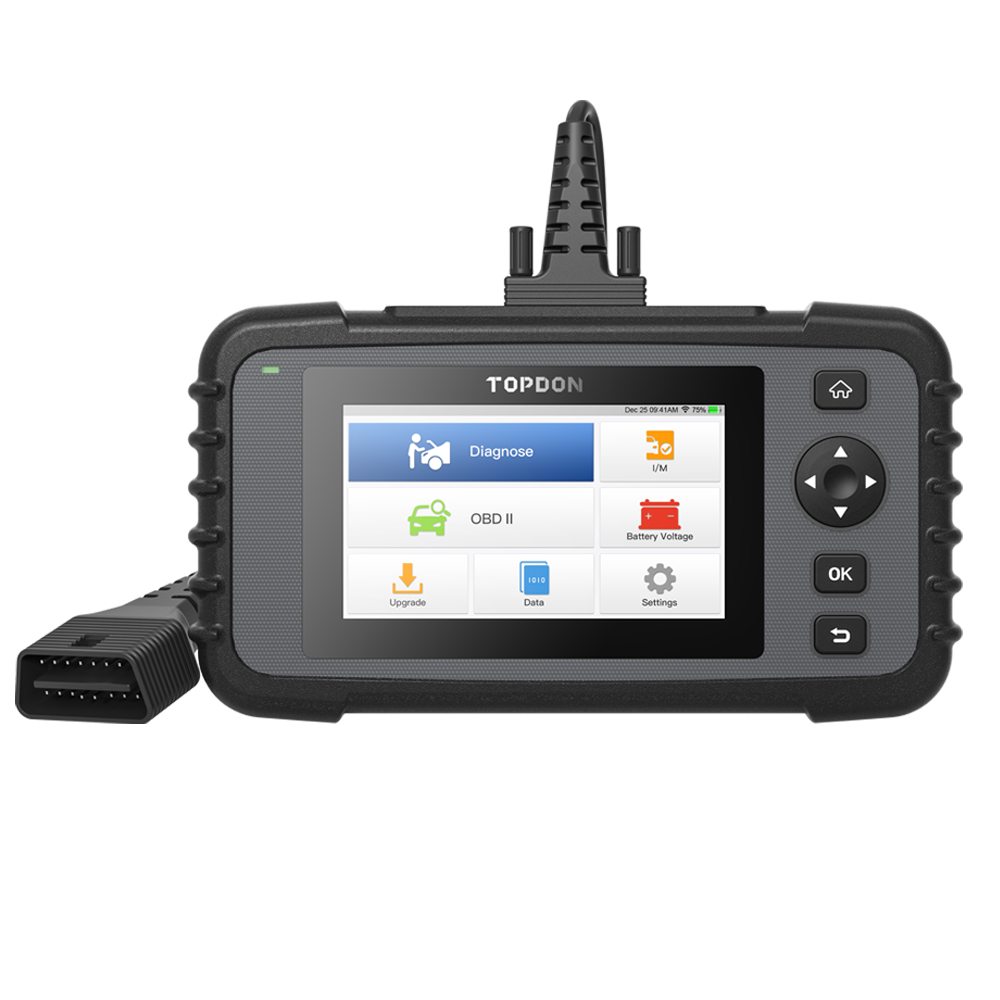

ArtiDiag500 - Android based OBD II Diagnostic Scan Tool

ArtiDiag 500 is an entry-level diagnostic scanner that provides critical data through an easy-to-use interface that is perfect for beginners. This tool can graph and merge live data streams for a quick and convenient analysis. It can diagnose the most essential vehicle systems and features AutoVIN technology for instant vehicle identification.


Features

  • Four System Diagnostics - Engine, Transmission, ABS, and SRS Systems
  • Diagnostics for 42 Vehicle Makes
  • Access to ECU Information
  • Reads & Clears DTCs
  • Display Live Data Stream
  • One-touch AutoVIN Technology: automatically identify the vehicle, and match the proper diagnostic software.
  • Vehicle History function: offer direct access to the previous diagnostic procedure
  • Automatically Generated Diagnostic Reports can be shared via email
  • Battery Voltage Monitor: Displays vehicle battery voltage in real-time
  • One-click wireless update via Wi-Fi
  • DTC Look-up Library for detailed DTC explanation
  • Feedback function for online technical assistance
  • Graph and Merge Live Data Stream for easy analysis

OBDII Functions

  • Read DTCs
  • Clear DTCs
  • Live Data
  • I/M Readiness Monitor Status
  • View Freeze Frame Data
  • O2 Sensor Test
  • On-board Monitor Test
  • EVAP Test (Mode$8)
  • Read Vehicle Information

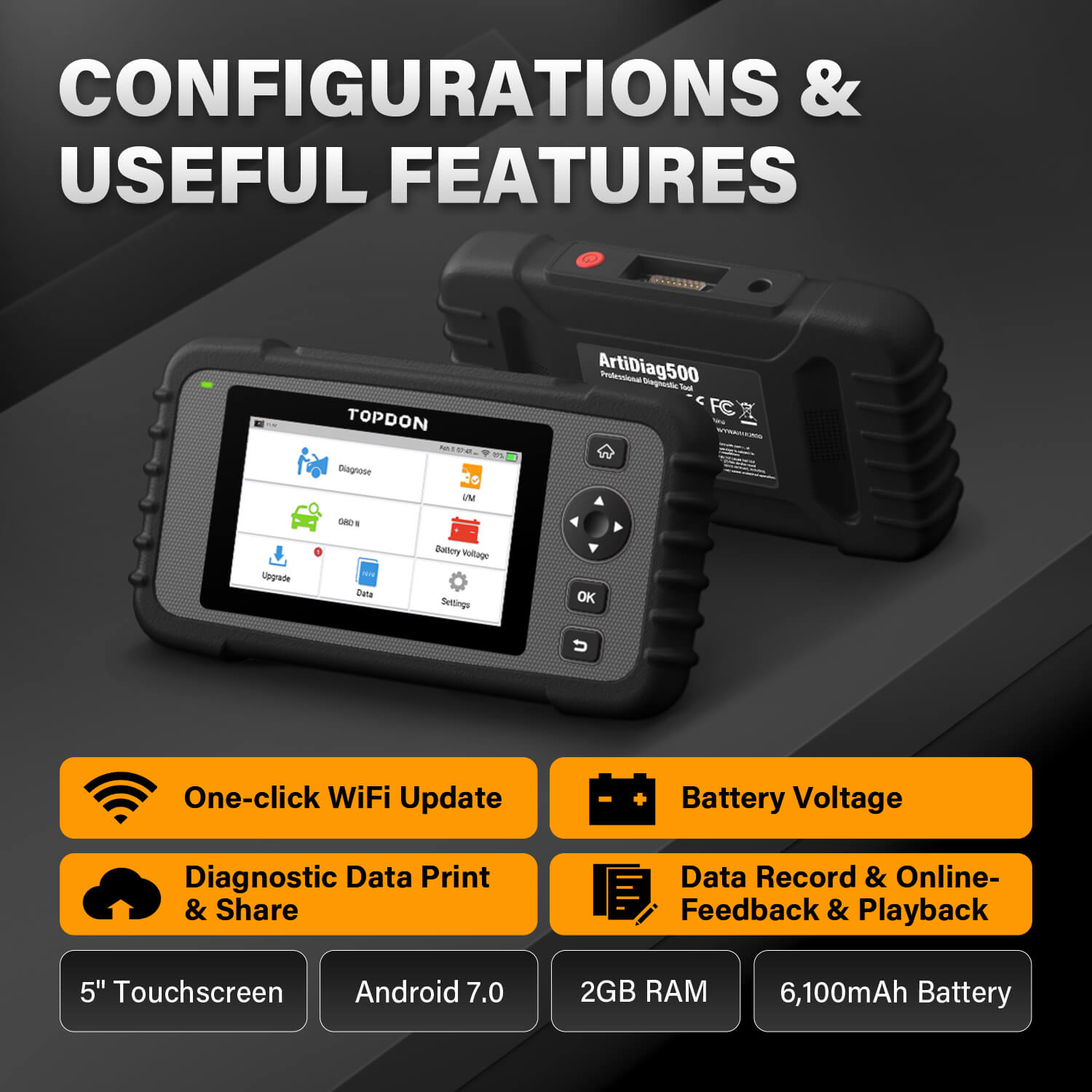

Specifications

  • Display: LCD 5-Inch, 1280*720 dpi
  • Operating system: Android 7.1
  • Operating voltage: 9~18V
  • Storage Temperature: -20℃~70℃ (-4℉~158℉)
  • Working Temperature: -10℃~50℃ (14℉~122℉)
  • Dimension: 232*126*34 mm (9.1*5.0*1.3 inch)
  • Package size: 272*218*80 mm (10.70*8.58*3.15 inch)
  • Length: 185 mm(7.28 inch)
  • Net Weight: 565g ( 19.92oz)
  • Multilingual Support: English, French, German, Spanish, Portuguese, Russian, Japanese, Italian

Package List

  • ArtiDiag500
  • Diagnostic Cable
  • Charging Cable
  • Quickstart Guide
  • User's Manual
  • Carrying Bag
