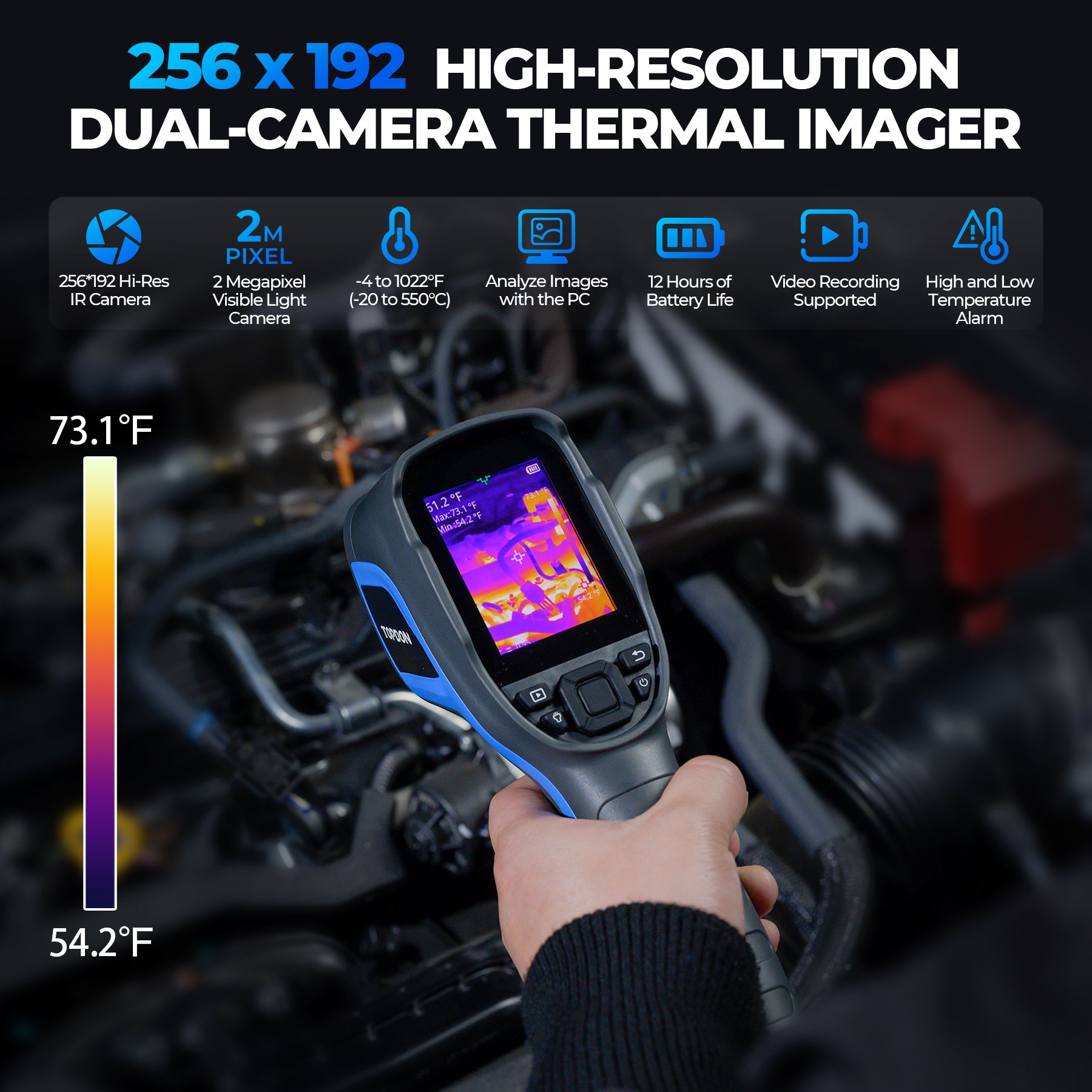

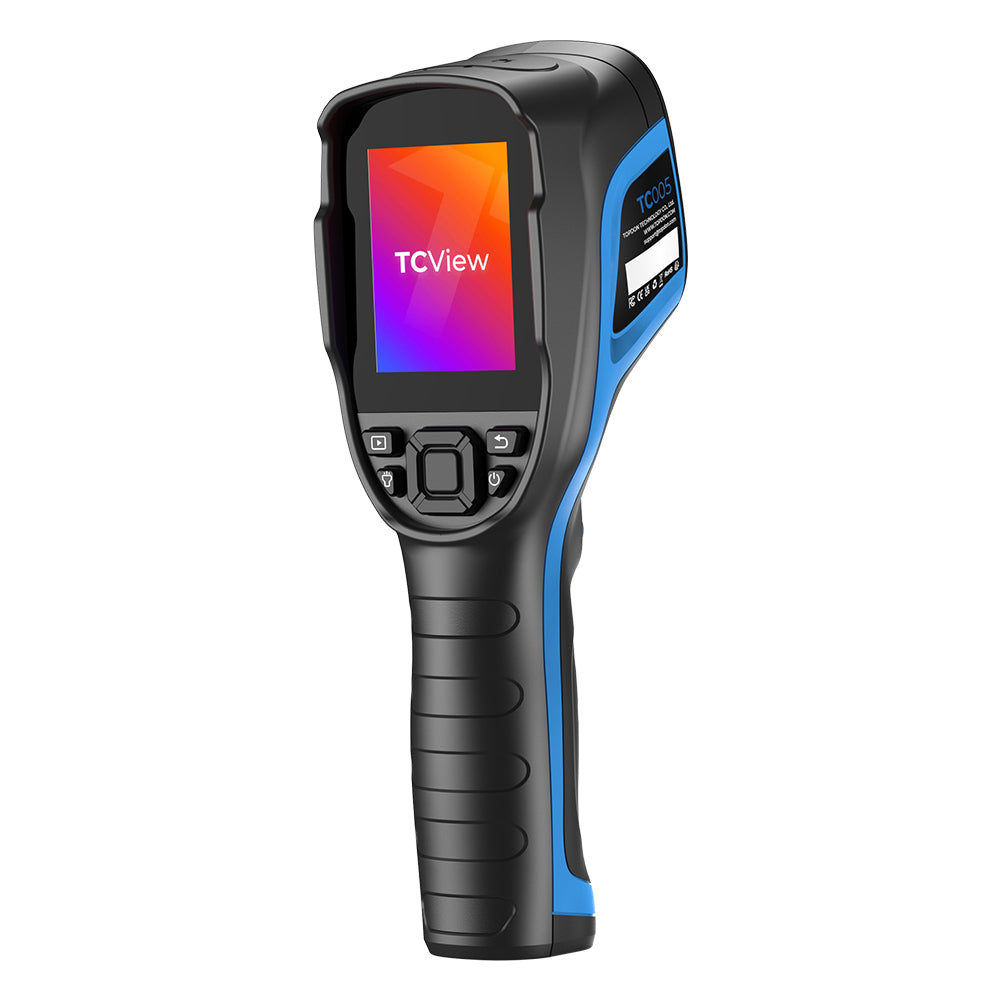

Handheld Thermal Imaging Camera, Dual Camera, High Temp Range

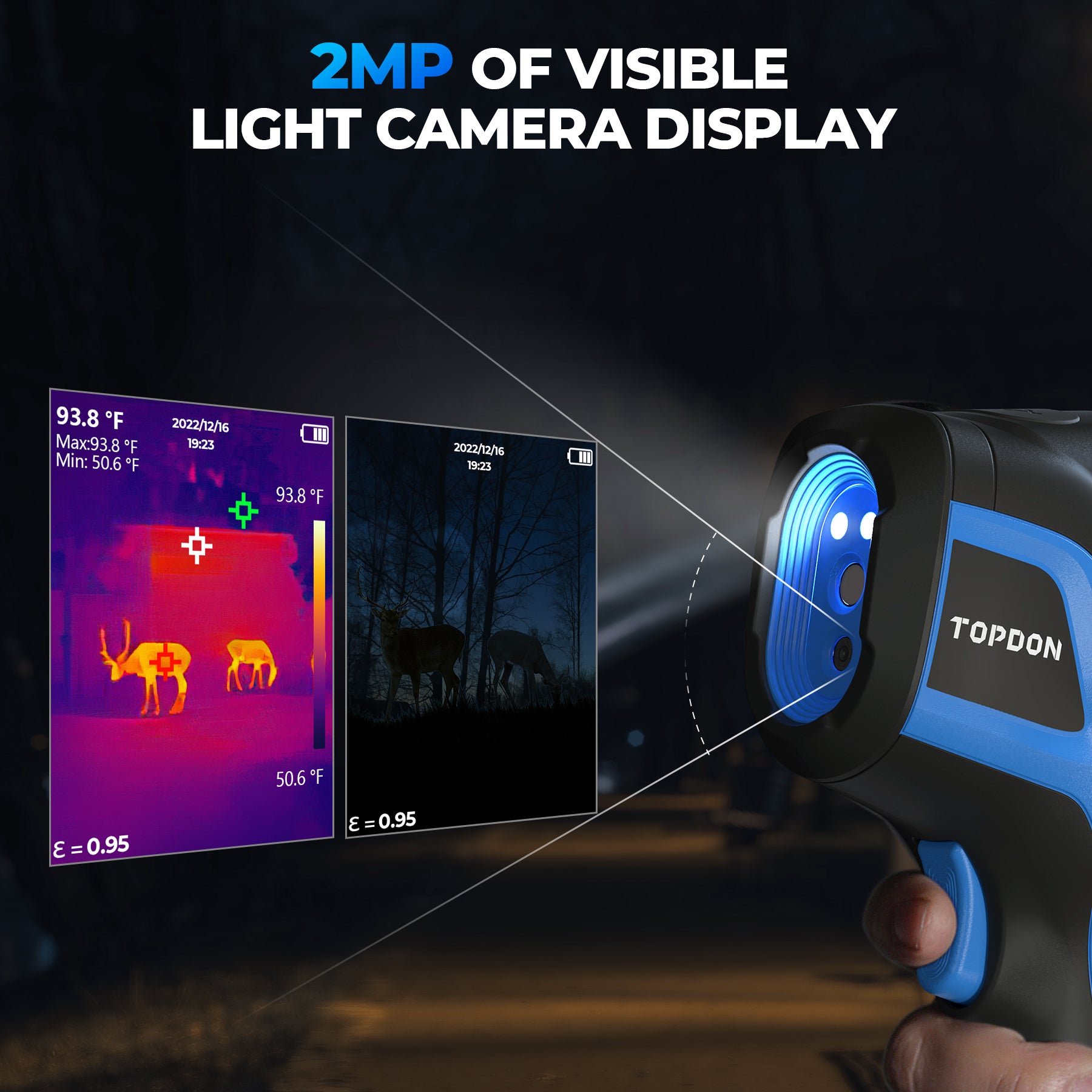

The TC005 is a handheld thermal camera that measures an expansive temperature range. From -20°C to 550°C (-4°F to +1022°F), and offers a 12-hour runtime. The high-resolution 256*192 pixel infrared camera allows you to say goodbye to blurry images. The tool is ready for analysis with the standalone and the PC modes, enabling users to project and upload images from the TC to their PC. Added benefits of the TC005 include seven options for Pseudo-Color Display, a 2-megapixel visible light camera for overlapping images, and a picture-in-picture mode.

  • Have questions? Ask an expert
View full details
Skip to product information
Features
  • High Resolution & Thermal Sensitivity
  • Three Measurement Modes & Auto-Detection
  • Wide FOV
  • Wide Measurement Range & Accuracy
  • Four Imaging Modes
  • PC Image Analysis and Instant Projection
  • One-Day Runtime
  • Built-in Fill LED Light
  • Built to Last
Learn More
Warranty & Updates
  • 1 Year Warranty
  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov

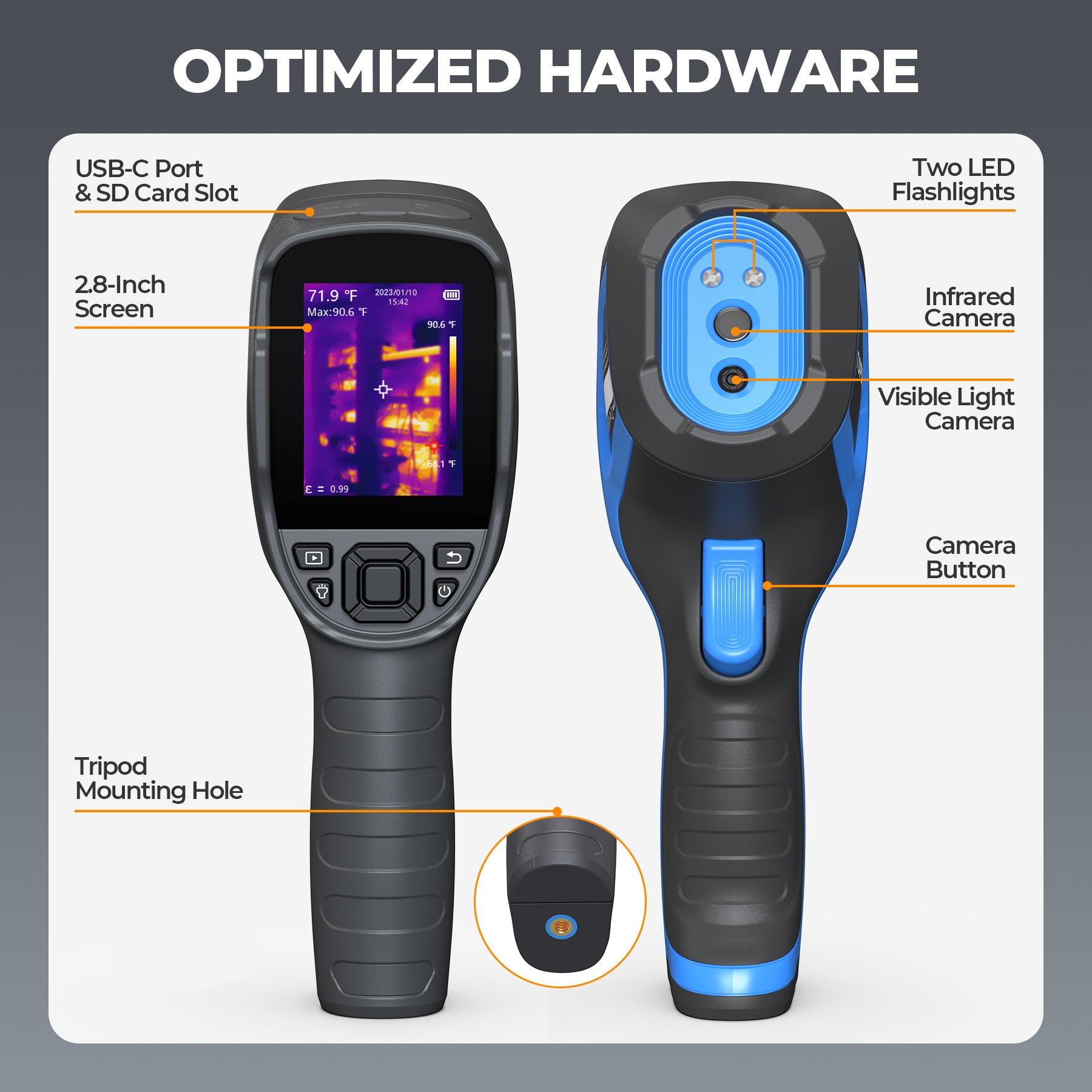

Hardware
System
Operating System
Battery Capacity
Display Screen
Operating Voltage
Charging Time
Battery Life
Storage
LED Flashlight
Imaging
Calibration Temperature Measurement Distance
Identification Distance
Recognition Distance
Detection Distance
Measurement Accuracy
Infrared Light Resolution
Focal Range
FOV
Spectral Range
NETD
Temperature Resolution
Frame Rate
AI Algorithm
Image Algorithm
Functions
Measurement Range
Professional Function
Digital Zoom
Image Modes
Measuring Modes
Video Recording
Video Transfer via USB
WIFI
PC-Based Analysis Software
Visible Light Camera Lens
Pseudo Color Bar
High/low temperature alarms
Automatic Power-off Time
Temperature Units
Other
Operating Temperature
Tripod Screw Hole
Drop, Impact, and Vibration
IP Rating
Certifications
Gross Weight (g)
Device Weight (g)
Package Size (mm)
Languages Supported
Updates

Linux
Standalone use/Windows devices
5000mAh
2.8 inch, 320x240 screen
5V
4h
12h
2GB RAM+16GB TF card

0.2m~5m
0.1~40m
40~80m
80~320m
±2°C or ±2%
256x192
3.2mm
52.5°X39.5°
8 – 14μm
<40mK
0.1℃
20Hz

-20 to 550 °C (-4 to 1022℉)
Industrial
1x/2x/4x
Thermal Imaging,Dual Fusion, Visible, Image-in-Image
Center spot/hot spot/cold spot
Supports image analysis with PC
2 megapixels
7 colors (white hot, black hot, lava, iron, rainbow, rainbowHC, RdGy)
5 mins, 10 mins, 20 mins, Off
Celsius, Fahrenheit, Kelvin, Distance Unit

-10°C to +50°C
2.0m, impact 25g (IEC 60068-2-27), vibration 2.5g (IEC60068-2-6)
IP54
UN38.3/DGM/CE/FCC/RoHS/UKCA
1100
520
280*165*120
13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)
Connect to PC for updates
High Resolution & Thermal Sensitivity

• The TC005 features a high-resolution thermal camera with a resolution of 256x192. This allows users to capture more details and say goodbye to blurry images.
• A high thermal sensitivity of 0.05℃ allows the TC005 to distinguish between tiny temperature differences.

Three Measurement Modes & Auto-Detection

• The TC005 has three different measurements to detect center, hot and cold spots.
• The automatic detection feature allows users view temperature differences more visually.

Wide FOV

The TC005 also features a wide 56° FOV to easily capture more objects in view. There is also no need to adjust focal length.

Wide Measurement Range & Accuracy

• The TC005 features a wide temperature measurement range of -20℃ - +550℃. It can also measure temperatures with ±2℃ accuracy for precise temperature measurements.
• NETD of this high-precision infrared sensor is less than 40mK and thermal imaging resolution displays down to 0.1℃. The tool's margin of error is less than 2%. This is to ensure the upmost accurate thermal readings.

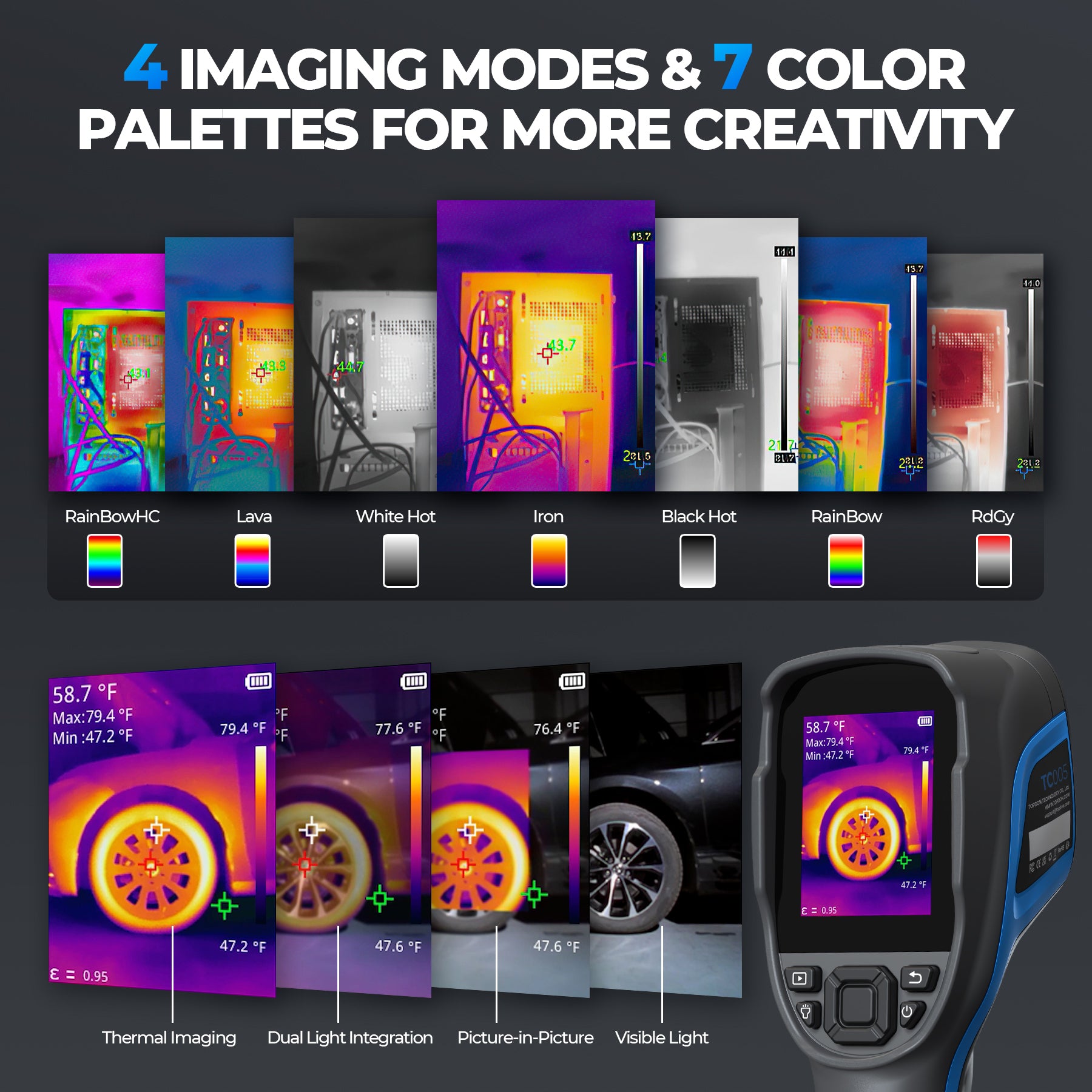

Four Imaging Modes

• The TC005 has four imaging modes to identify target in a timely manner.
• These include: Thermal Imaging mode, Dual Light mode, Visible Light mode, and Image in Image mode.

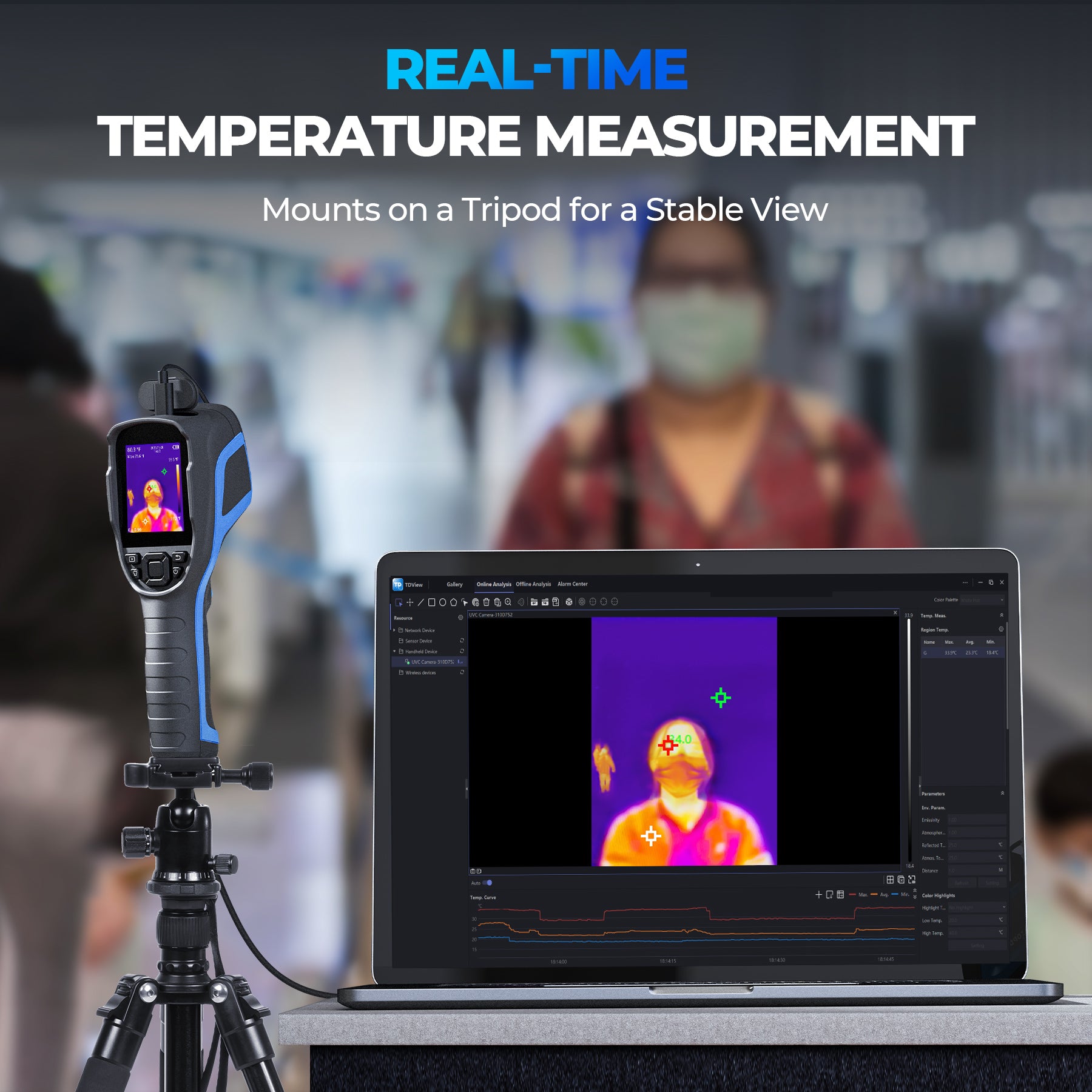

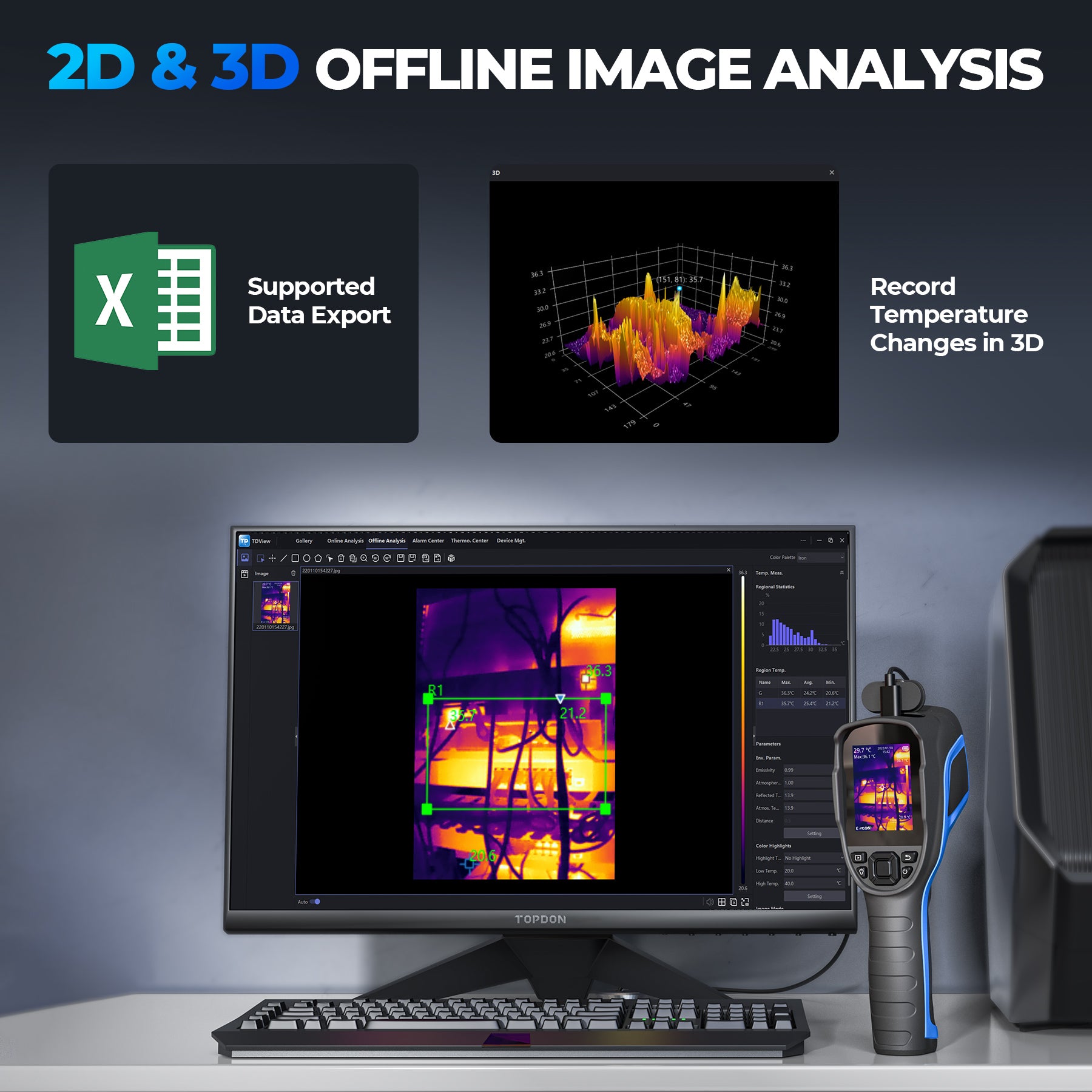

PC Image Analysis and Instant Projection

Professional analysis software allows users to easily save and share diagnostic data on a PC. The TC005 also supports screen projection on a PC as well.

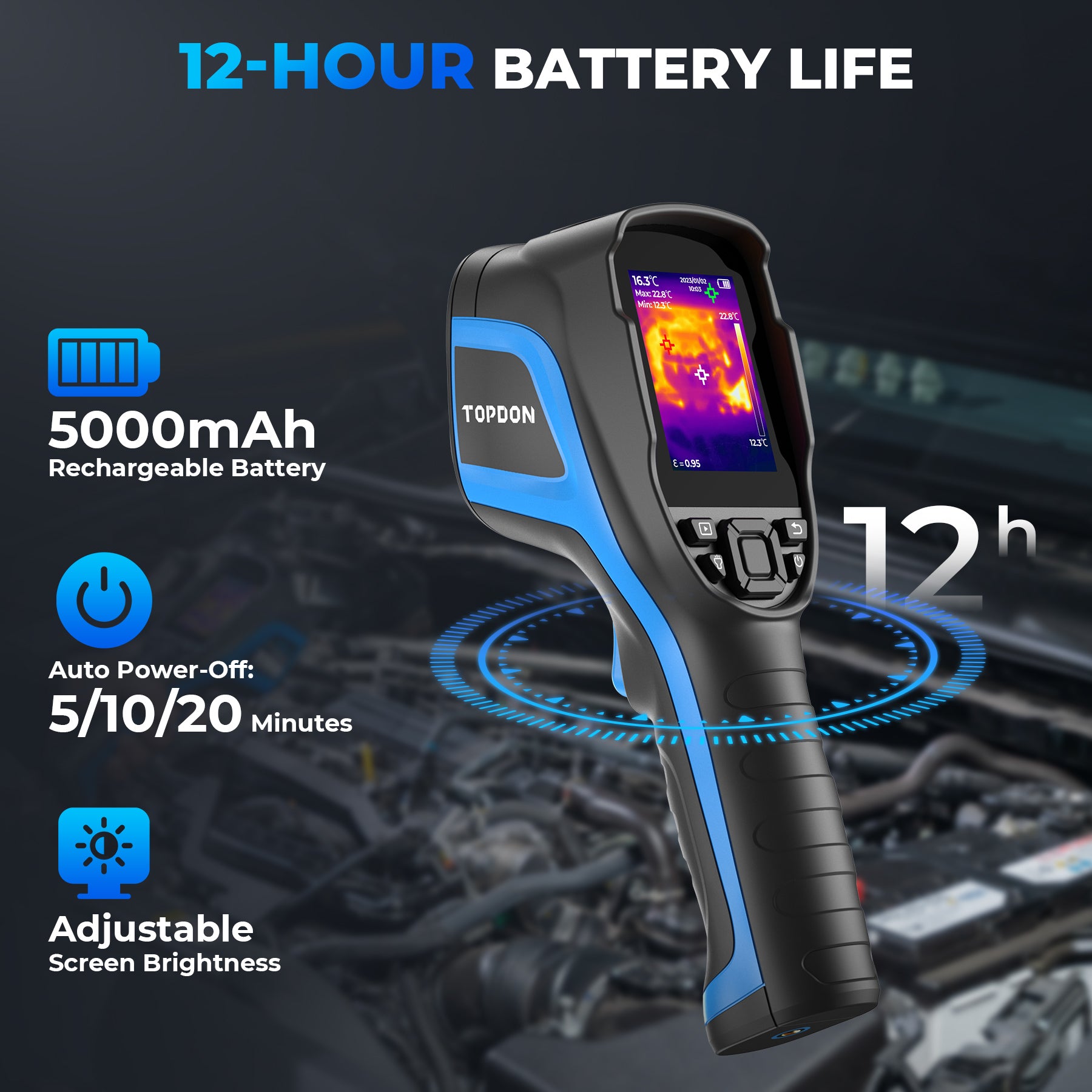

One-Day Runtime

A powerful integrated battery allows the TC005 to have a 12-hour runtime

Built-in Fill LED Light

A built-in LED light allows users to record thermal readings without an additional light source.

Built to Last

IP54 rated for protection against water and dust and 2m drop proof allows you to be more carefree while using the device.

Hardware
System
Linux
Operating System
Standalone use/Windows devices
Battery Capacity
5000mAh
Display Screen
2.8 inch, 320x240 screen
Operating Voltage
5V
Charging Time
4h
Battery Life
12h
Storage
2GB RAM+16GB TF card
LED Flashlight
Imaging
Calibration Temperature Measurement Distance
0.2m~5m
Identification Distance
0.1~40m
Recognition Distance
40~80m
Detection Distance
80~320m
Measurement Accuracy
±2°C or ±2%
Infrared Light Resolution
256x192
Focal Range
3.2mm
FOV
52.5°X39.5°
Spectral Range
8 – 14μm
NETD
<40mK
Temperature Resolution
0.1℃
Frame Rate
20Hz
AI Algorithm
Image Algorithm
Functions
Measurement Range
-20 to 550 °C (-4 to 1022℉)
Professional Function
Industrial
Digital Zoom
1x/2x/4x
Image Modes
Thermal Imaging,Dual Fusion, Visible, Image-in-Image
Measuring Modes
Center spot/hot spot/cold spot
Video Recording
Video Transfer via USB
WIFI
PC-Based Analysis Software
Supports image analysis with PC
Visible Light Camera Lens
2 megapixels
Pseudo Color Bar
7 colors (white hot, black hot, lava, iron, rainbow, rainbowHC, RdGy)
High/low temperature alarms
Automatic Power-off Time
5 mins, 10 mins, 20 mins, Off
Temperature Units
Celsius, Fahrenheit, Kelvin, Distance Unit
Other
Operating Temperature
-10°C to +50°C
Tripod Screw Hole
Drop, Impact, and Vibration
2.0m, impact 25g (IEC 60068-2-27), vibration 2.5g (IEC60068-2-6)
IP Rating
IP54
Certifications
UN38.3/DGM/CE/FCC/RoHS/UKCA
Gross Weight (g)
1100
Device Weight (g)
520
Package Size (mm)
280*165*120
Languages Supported
13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)
Updates
Connect to PC for updates
TC005 Thermal Camera
16GB TF Card
USB Cable
Carrying Bag
User Manual
5V 2A Power Adapter
