Upgraded Handheld Thermal Imaging Camera 256x192 Resolution

The TC004 is a professional thermal inspection tool built for fast, everyday jobsite use. Its 3.5-inch display and TISR-supported imaging deliver clear thermal visuals, while built-in WiFi enables a streamlined workflow for electrical, building, and mechanical inspections.

  • Have questions? Ask an expert
View full details
4.8

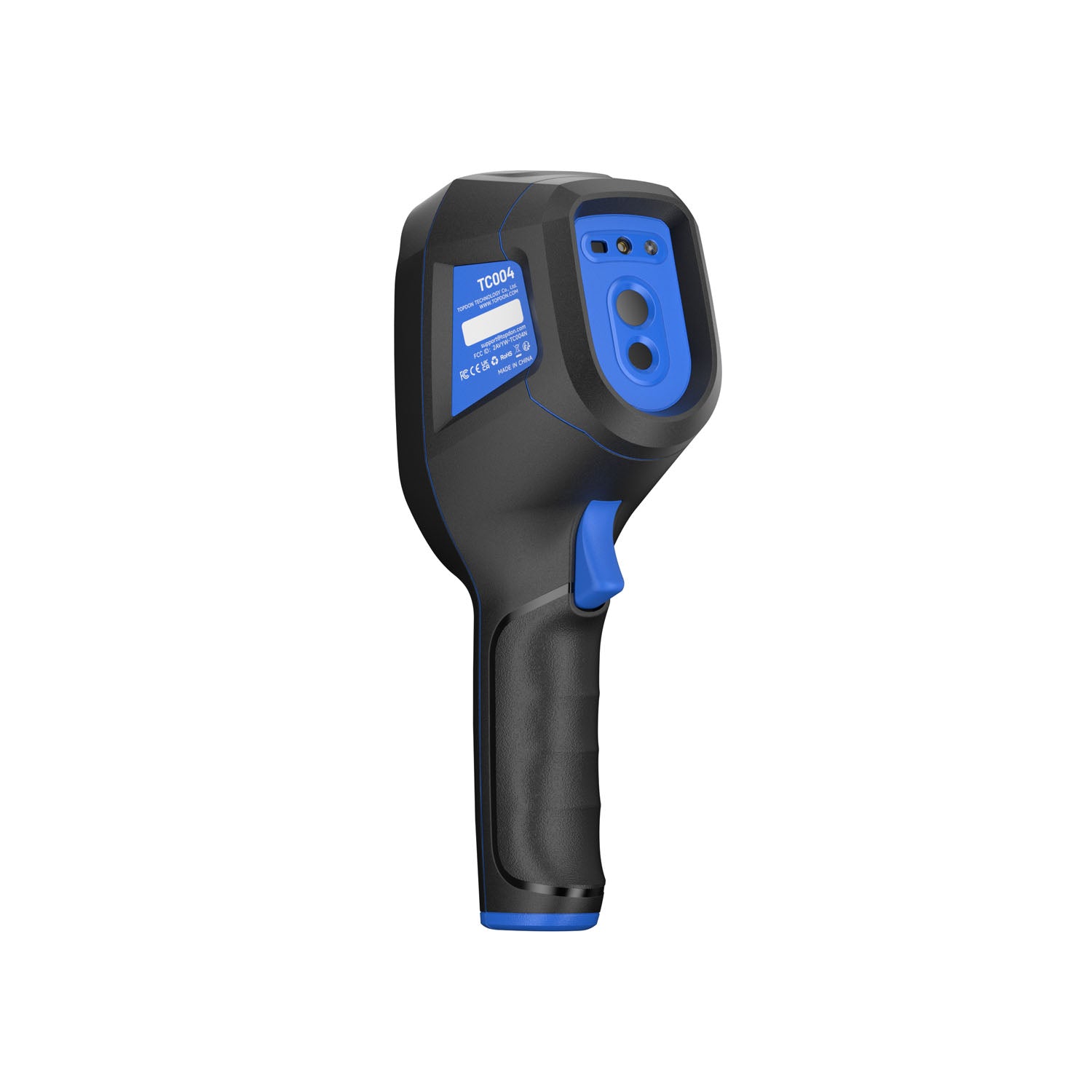

  • TOPDON TC004 thermal camera front angle view handheld infrared imaging device for electrical and building inspections

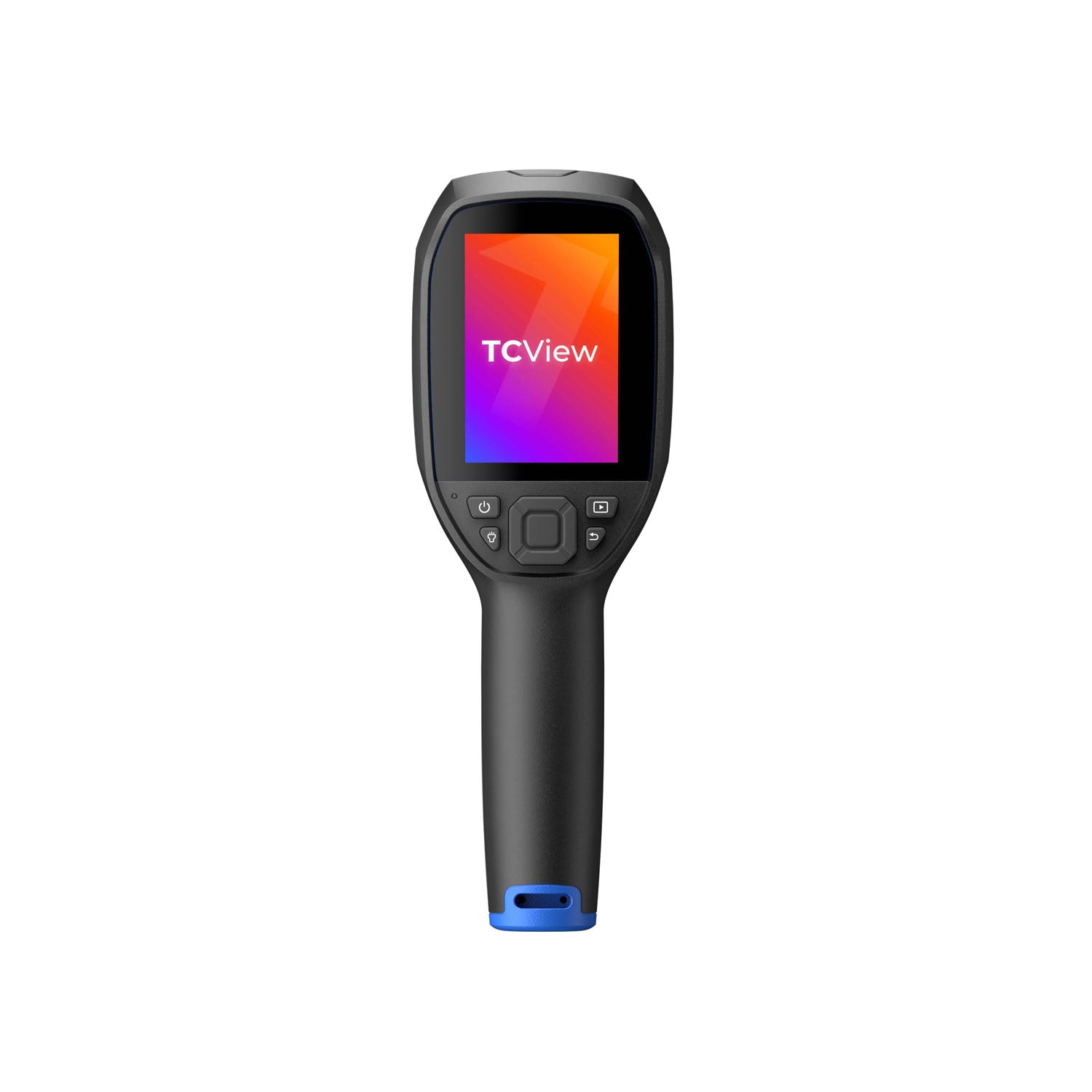

  • TOPDON TC004 thermal imaging camera front display screen showing TCView interface for real time thermal analysis

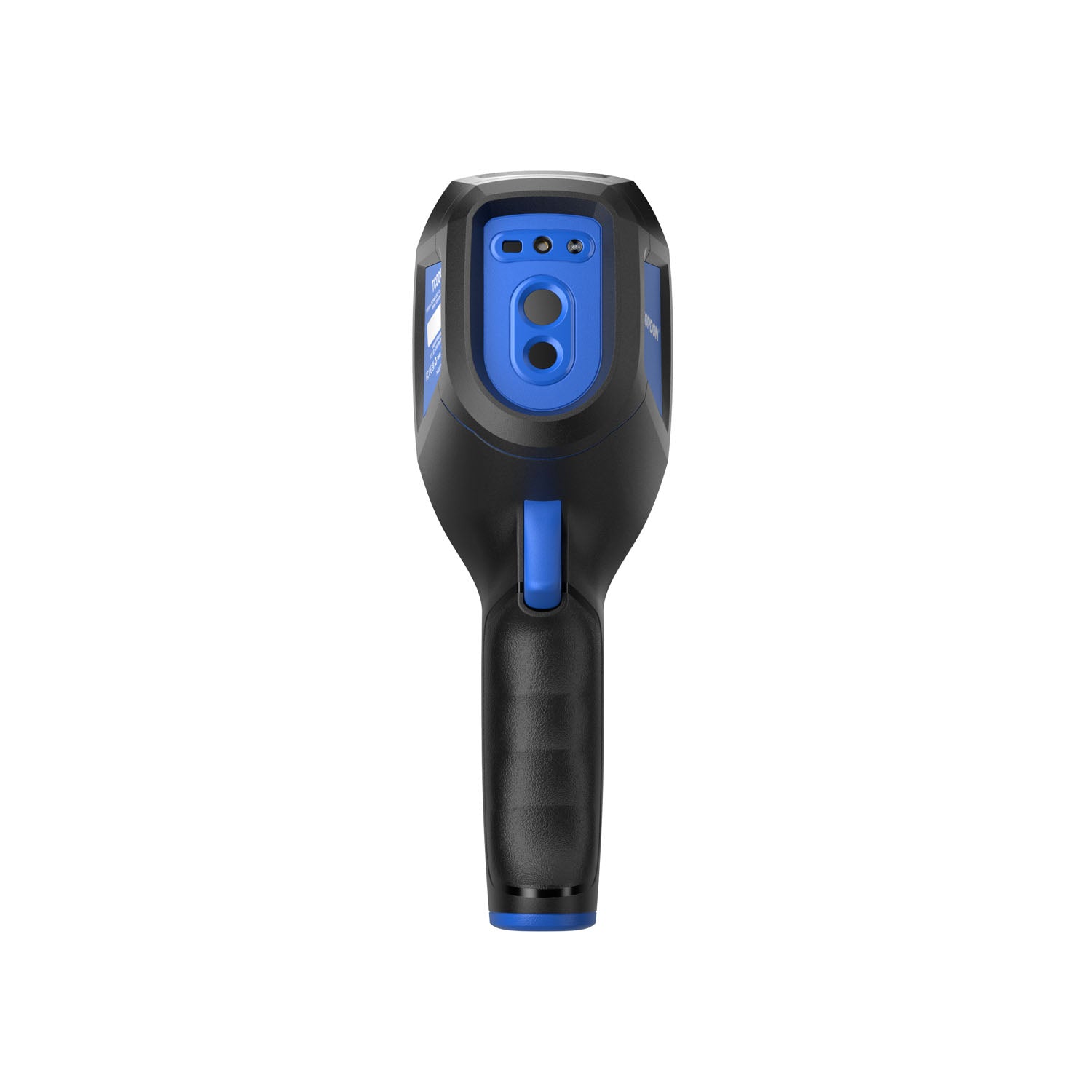

  • TOPDON TC004 infrared thermal camera rear view showing dual lens and sensor layout for precise temperature measurement

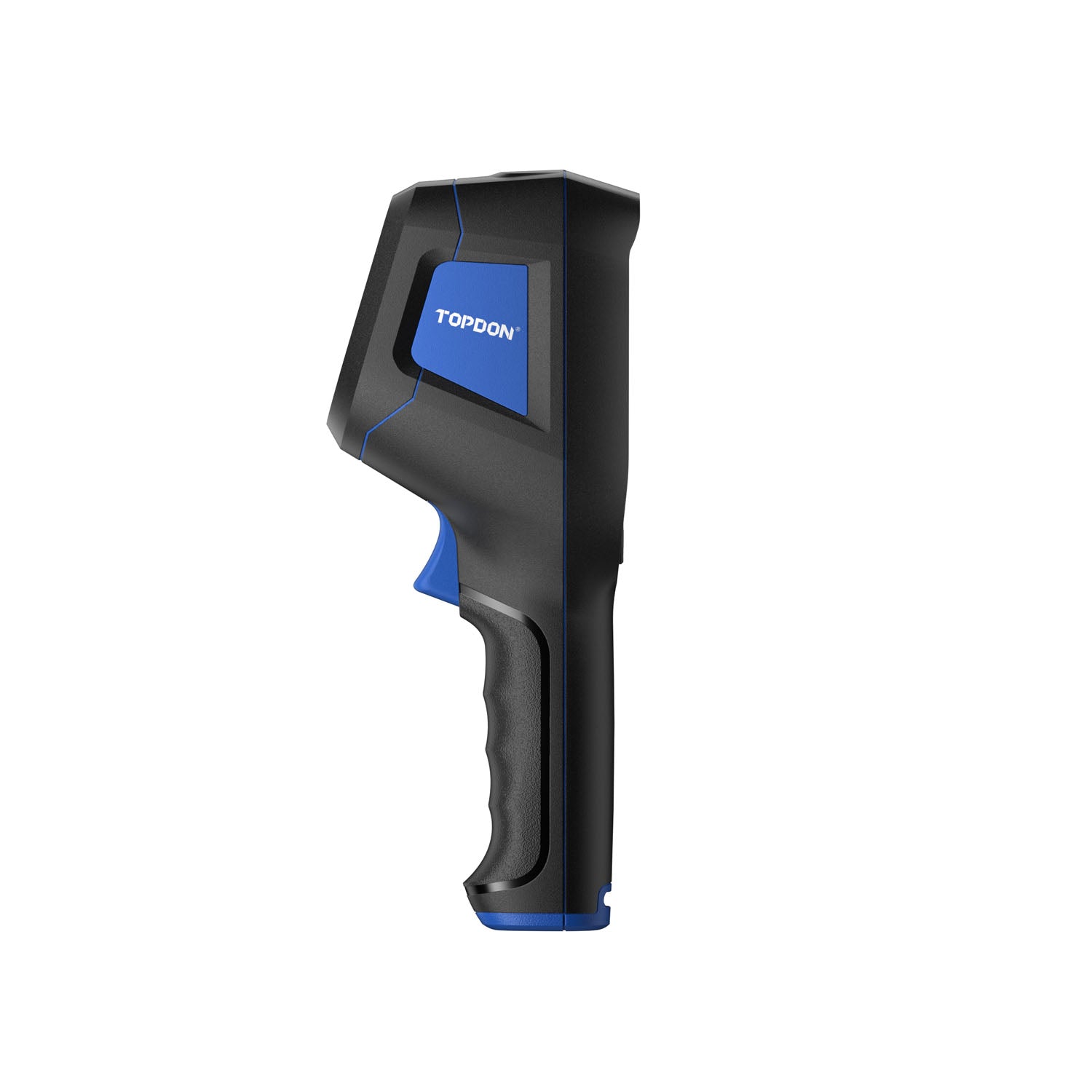

  • TOPDON TC004 handheld thermal imager side profile ergonomic design for industrial and HVAC inspection use

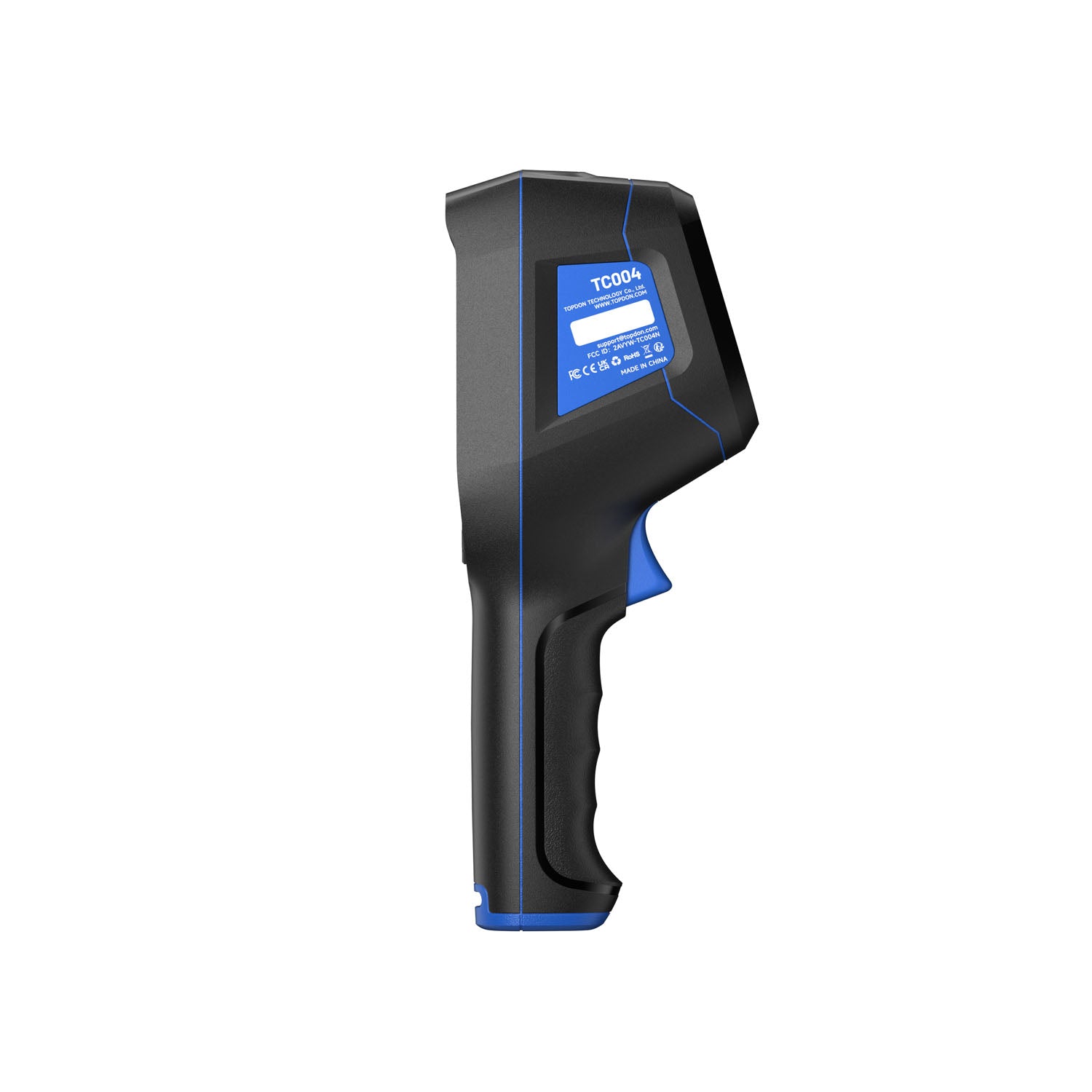

  • TOPDON TC004 infrared camera back housing with product label and rugged design for jobsite inspections

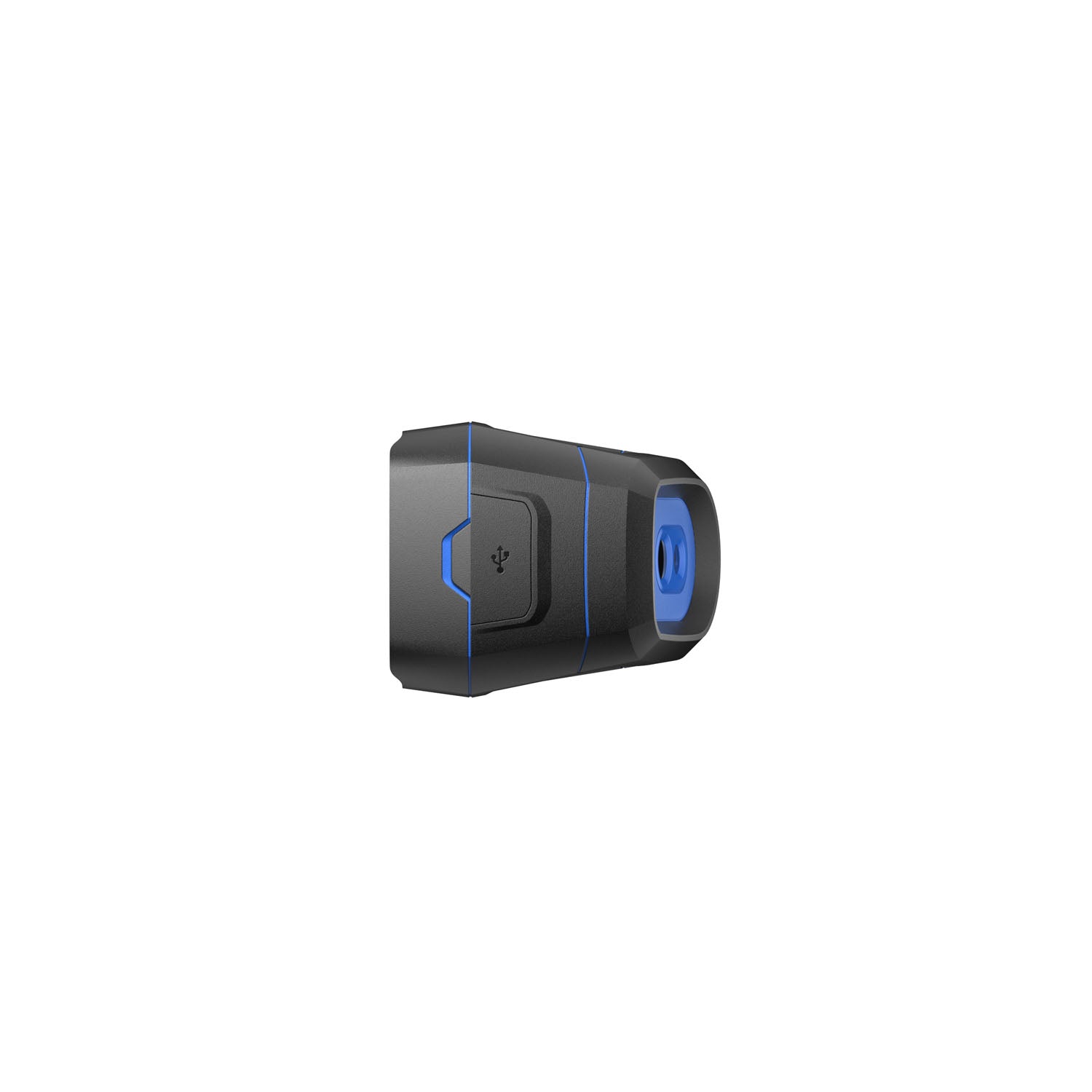

  • TOPDON TC004 thermal camera top view showing sensor opening and USB port for data transfer and charging

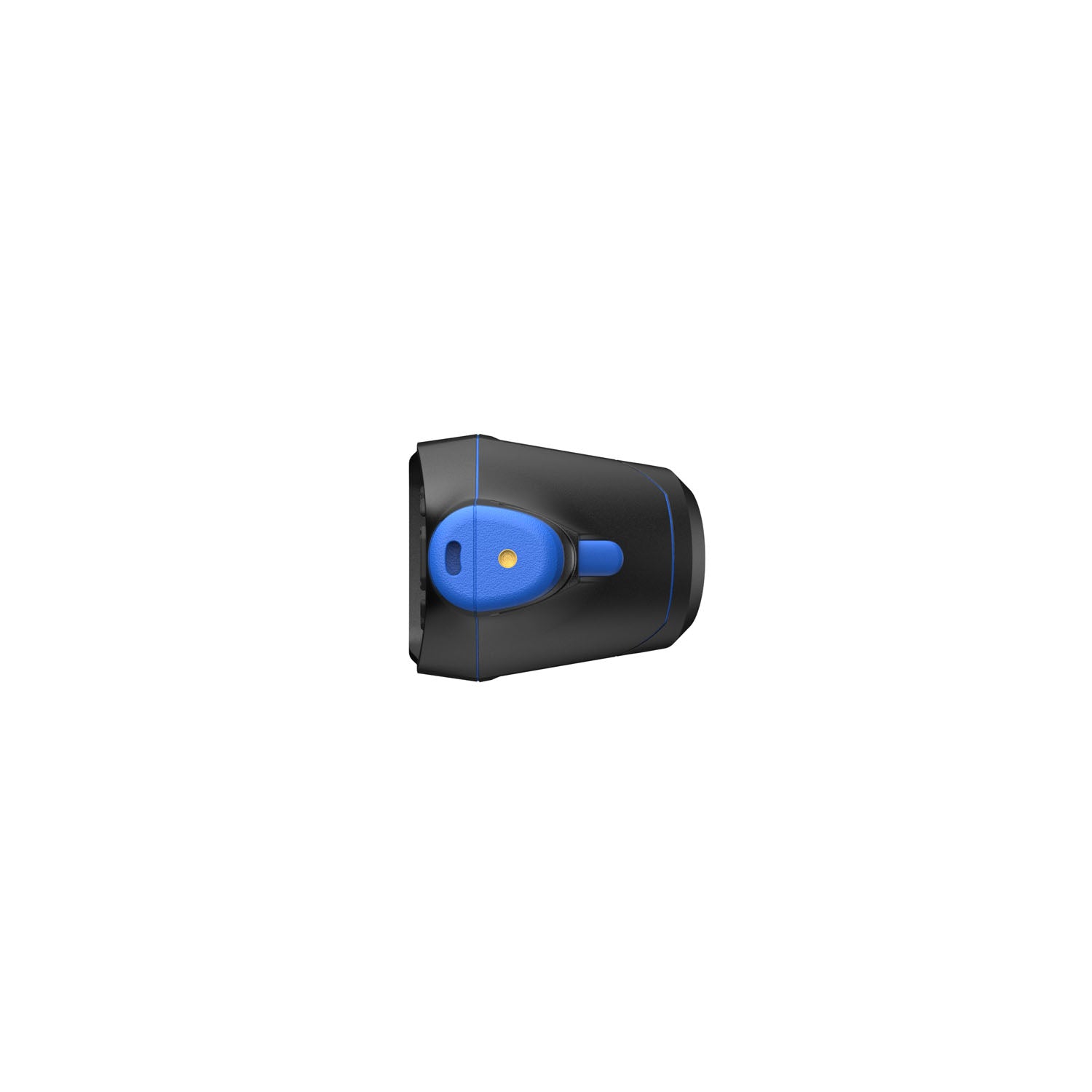

  • TOPDON TC004 thermal imaging device bottom view with mounting point and durable construction

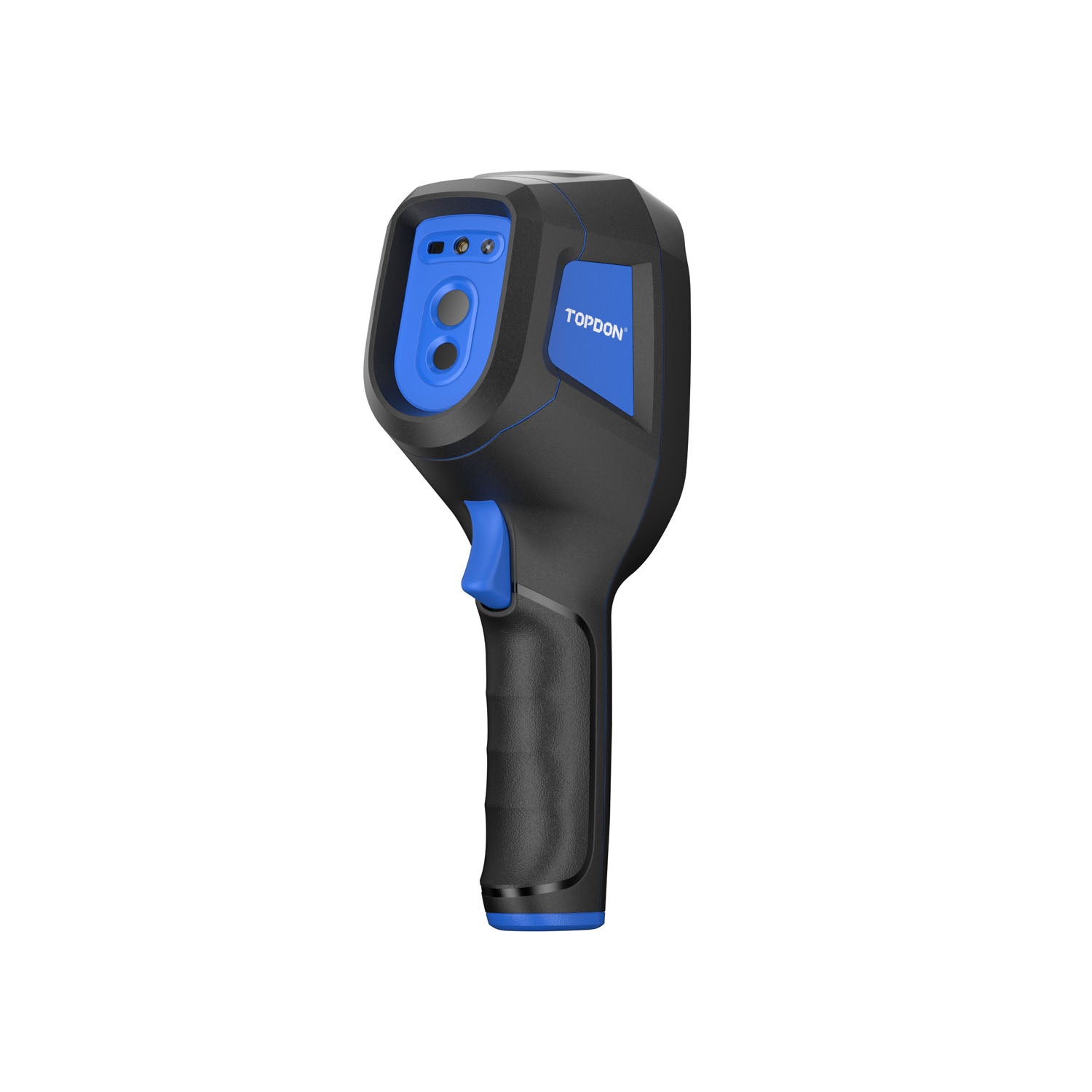

  • TOPDON TC004 handheld infrared camera angled rear view showing grip and dual lens system for inspection accuracy
Features
  • Larger Display. Clearer Decisions.
  • Sharp, Clear Thermal Images
  • Laser Pinpointed Inspection Accuracy
  • Expanded Storage for Thorough Documentation
  • Flexible Connectivity for Fast Reporting
  • Long Runtime for Extended Inspections
  • Built for Demanding Inspection Environments
Learn More
Warranty & Updates
  • 1 Year Warranty
Resources
  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hardware
System
Operating System
Battery Capacity
Display Screen
Operating Voltage
Charging Time
Battery Life
Storage
LED Flashlight
Imaging
Calibration Temperature Measurement Distance
Identification Distance
Recognition Distance
Detection Distance
Measurement Accuracy
Infrared Light Resolution
Focal Range
FOV
Spectral Range
NETD
Temperature Resolution
Frame Rate
AI Algorithm
Image Algorithm
Functions
Measurement Range
Professional Function
Digital Zoom
Image Modes
Measuring Modes
Video Recording
Video Transfer via USB
WIFI
PC-Based Analysis Software
Visible Light Camera Lens
Pseudo Color Bar
High/low temperature alarms
Automatic Power-off Time
Temperature Units
Other
Operating Temperature
Tripod Screw Hole
Drop, Impact, and Vibration
IP Rating
Certifications
Gross Weight (g）
Device Weight (g）
Package Size (mm)
Languages Supported
Updates

Linux
iOS/Android/Windows Devices/Standalone use
5000mAh
3.5 inch, 640x480 screen
5V
4h
12h
64GB eMMC
True

0.2m~5m
0.1~40m
40~80m
80~320m
±2°C or ±2%
256x192 (512x384 TISR)
3.2mm
56°X42°
8 – 14μm
<40mK
0.1℃
25Hz

-20 to 550℃ (-4 to 1022℉)
Industrial
1x/2x/4x
Thermal Imaging
Center spot/hot spot/cold spot
Supports image analysis with PC
5 colors (white hot, black hot, iron, rainbow,dark red)
5 mins, 10 mins, 20 mins, Off
Celsius, Fahrenheit, Kelvin

-10°C to +50°C
2.0m, impact 25g (IEC 60068-2-27), vibration 2.5g (IEC60068-2-6)
IP54
UN38.3/DGM/CE/FCC/RoHS/UKCA
1010
520
276*160*124
13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)
Connect to PC for updates
Larger Display. Clearer Decisions.

The TC004 features a 3.5-inch display that provides a wider and more comfortable viewing experience, making it easier to identify hotspots and temperature differences during daily inspections.

Sharp, Clear Thermal Images

With a 256×192 infrared resolution (TISR-enhanced up to 512×384), the TC004 captures detailed thermal images that help you detect temperature variations and make confident decisions on the first pass.

Laser Pinpointed Inspection Accuracy

A built-in red laser pointer marks the measurement area, making it easier to align thermal images with the actual target and locate anomalies during inspections.

Expanded Storage for Thorough Documentation

Equipped with 64GB of built-in storage, the TC004 allows you to store thousands of images and videos, supporting thorough documentation throughout the workday without interruptions.

Flexible Connectivity for Fast Reporting

Integrated Wi-Fi connects to the TopInfrared mobile app, while a USB connection supports file transfer and analysis through TopView PC software. Sync files quickly, perform thermal analysis, and generate professional inspection reports more efficiently.

Long Runtime for Extended Inspections

Powered by a 5,000 mAh battery, the TC004 delivers up to 8.5 hours of continuous operation and fully recharges in just 2 hours, supporting extended inspections with minimal downtime.

Built for Demanding Inspection Environments

Built for real-world environments, the TC004 features IP54-rated protection against dust and splashes, 2-meter drop resistance, and an integrated LED light to improve visibility in dark or confined inspection areas.

Hardware
System
Linux
Operating System
iOS/Android/Windows Devices/Standalone use
Battery Capacity
5000mAh
Display Screen
3.5 inch, 640x480 screen
Operating Voltage
5V
Charging Time
4h
Battery Life
12h
Storage
64GB eMMC
LED Flashlight
Imaging
Calibration Temperature Measurement Distance
0.2m~5m
Identification Distance
0.1~40m
Recognition Distance
40~80m
Detection Distance
80~320m
Measurement Accuracy
±2°C or ±2%
Infrared Light Resolution
256x192 (512x384 TISR)
Focal Range
3.2mm
FOV
56°X42°
Spectral Range
8 – 14μm
NETD
<40mK
Temperature Resolution
0.1℃
Frame Rate
25Hz
AI Algorithm
Image Algorithm
Functions
Measurement Range
-20 to 550℃ (-4 to 1022℉)
Professional Function
Industrial
Digital Zoom
1x/2x/4x
Image Modes
Thermal Imaging
Measuring Modes
Center spot/hot spot/cold spot
Video Recording
Video Transfer via USB
WIFI
PC-Based Analysis Software
Supports image analysis with PC
Visible Light Camera Lens
Pseudo Color Bar
5 colors (white hot, black hot, iron, rainbow,dark red)
High/low temperature alarms
Automatic Power-off Time
5 mins, 10 mins, 20 mins, Off
Temperature Units
Celsius, Fahrenheit, Kelvin
Other
Operating Temperature
-10°C to +50°C
Tripod Screw Hole
Drop, Impact, and Vibration
2.0m, impact 25g (IEC 60068-2-27), vibration 2.5g (IEC60068-2-6)
IP Rating
IP54
Certifications
UN38.3/DGM/CE/FCC/RoHS/UKCA
Gross Weight (g）
1010
Device Weight (g）
520
Package Size (mm)
276*160*124
Languages Supported
13 languages (English, Traditional Chinese, Korean, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Hungarian, Turkish)
Updates
Connect to PC for updates
TC004
Universal Travel Adapter
USB Cable (USB-A to USB-C)
User Manual
Storage Bag
