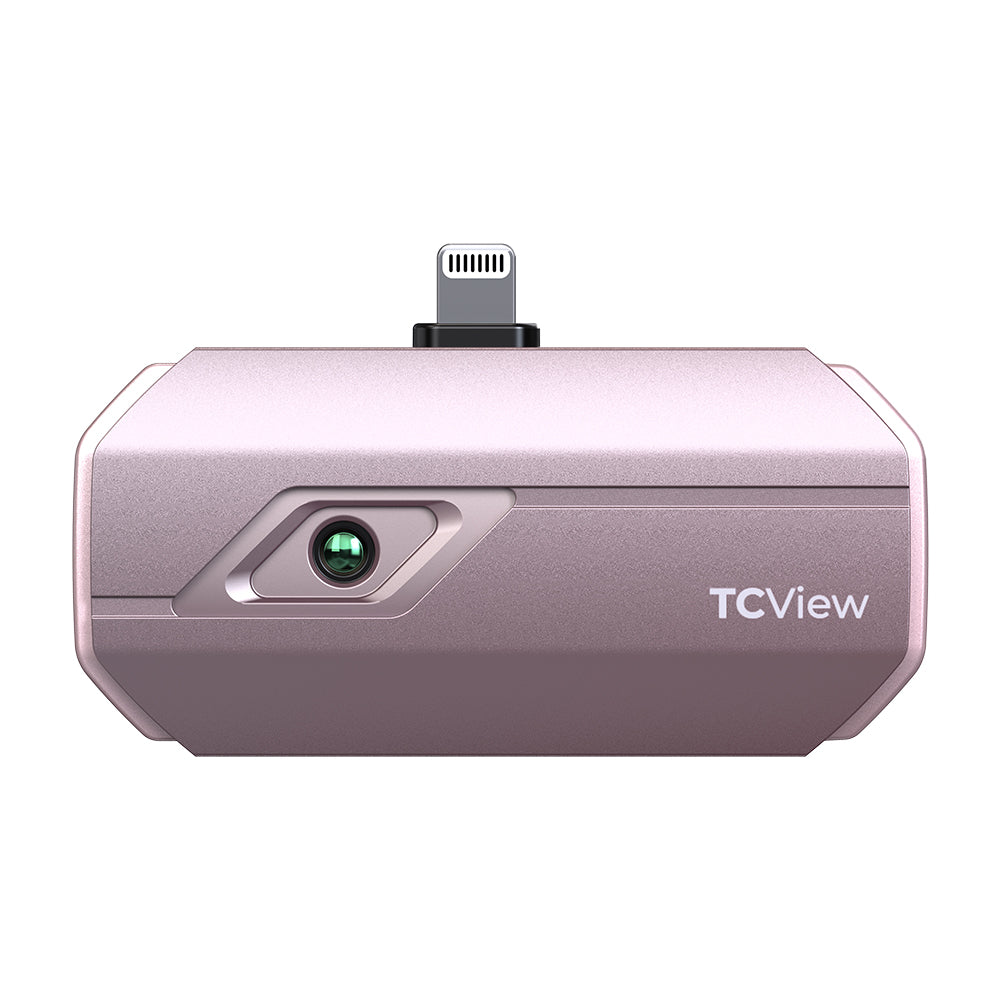

TC002 (iOS Devices- Lightning Port)

TC002 (iOS Devices- Lightning Port)

$240.00
$240.00
Sale Sold out
Color

Thermal Imaging Camera for iOS Devices 256x192 Resolution

The TC002 thermal imaging camera for iOS devices provides top-notch accuracy for temperature detection, insulation inspection, and circuit board inspection. With an ultra-high resolution of 256x192, the TC002 delivers clear and detailed thermal images. It offers a temperature detection range of ±3.6°F(2°C), with an accuracy of 0.1°C; and with its low power consumption of 0.35W, you can use it for extended periods of time without worrying about running out of battery. The high heat sensitivity of 40mk allows for precise temperature changes to be sensed.

  • Have questions? Ask an expert
View full details
4.0

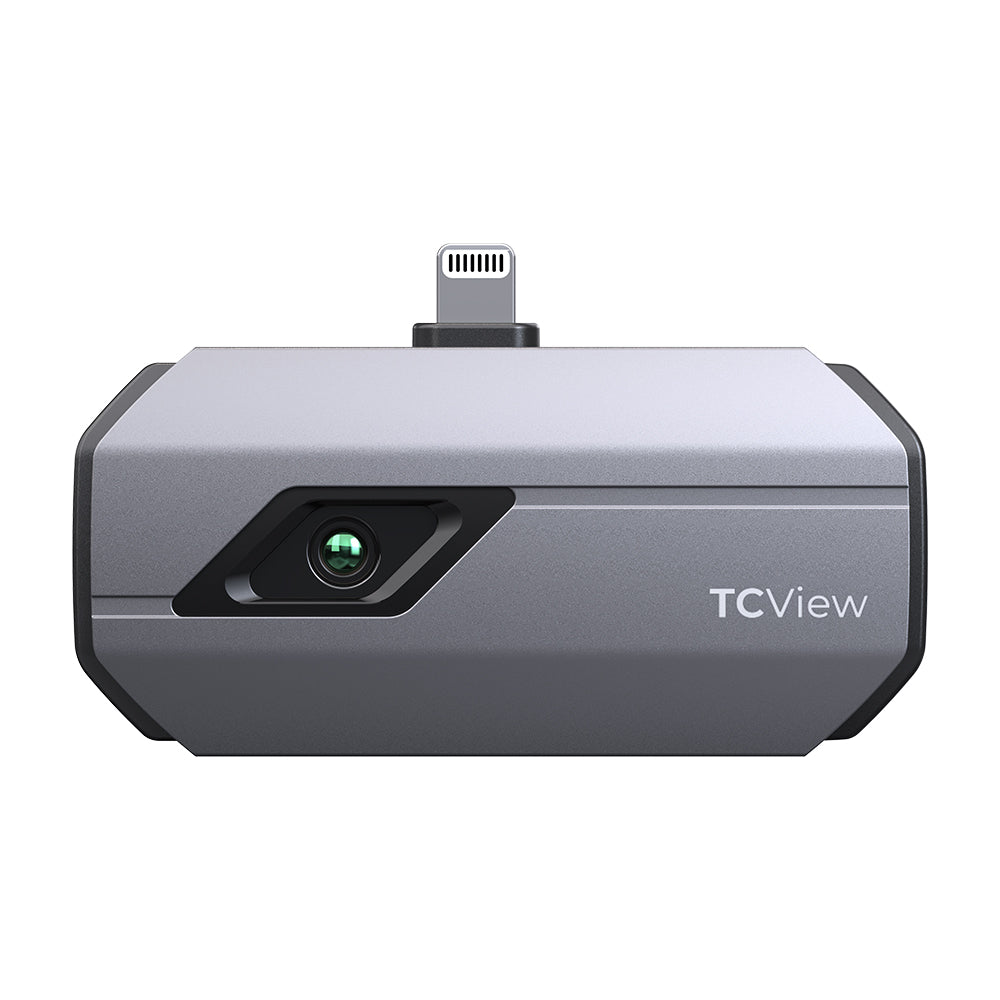

  • TOPDON TC002 Thermal Imaging Camera iOS/Apple - Front

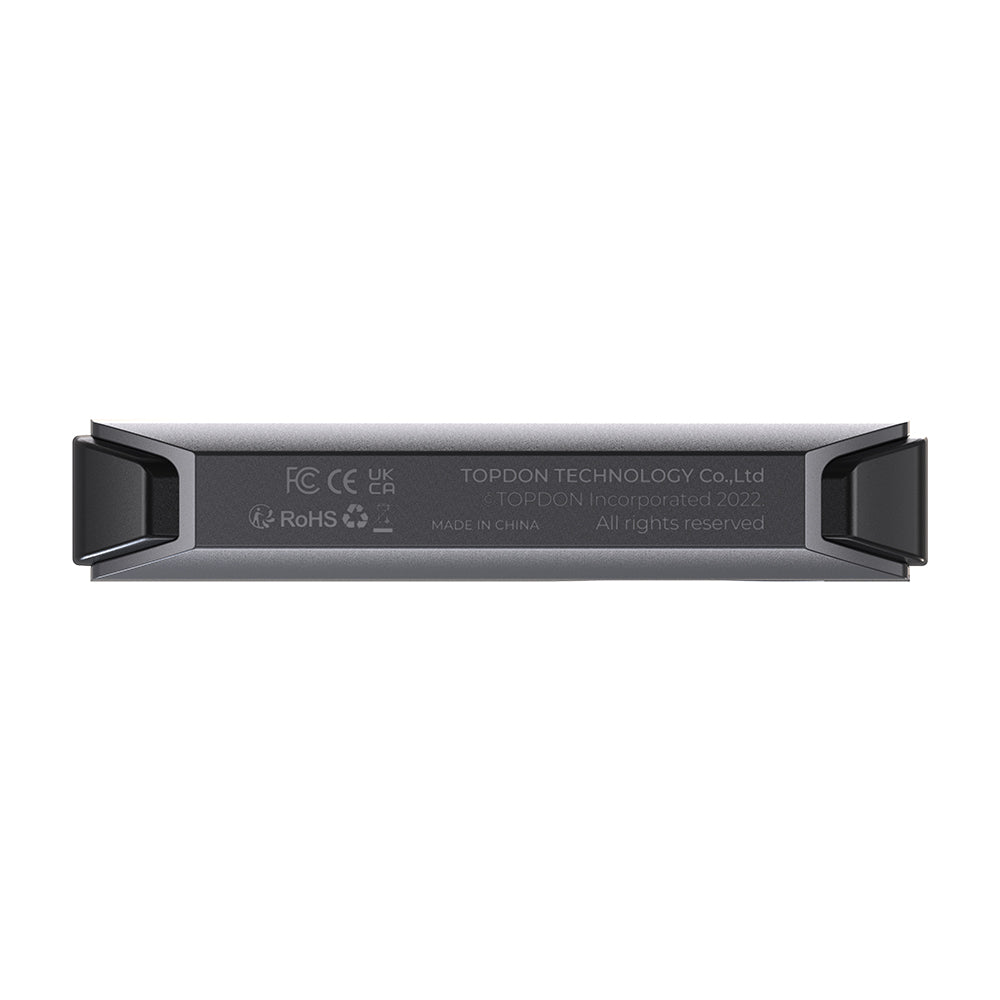

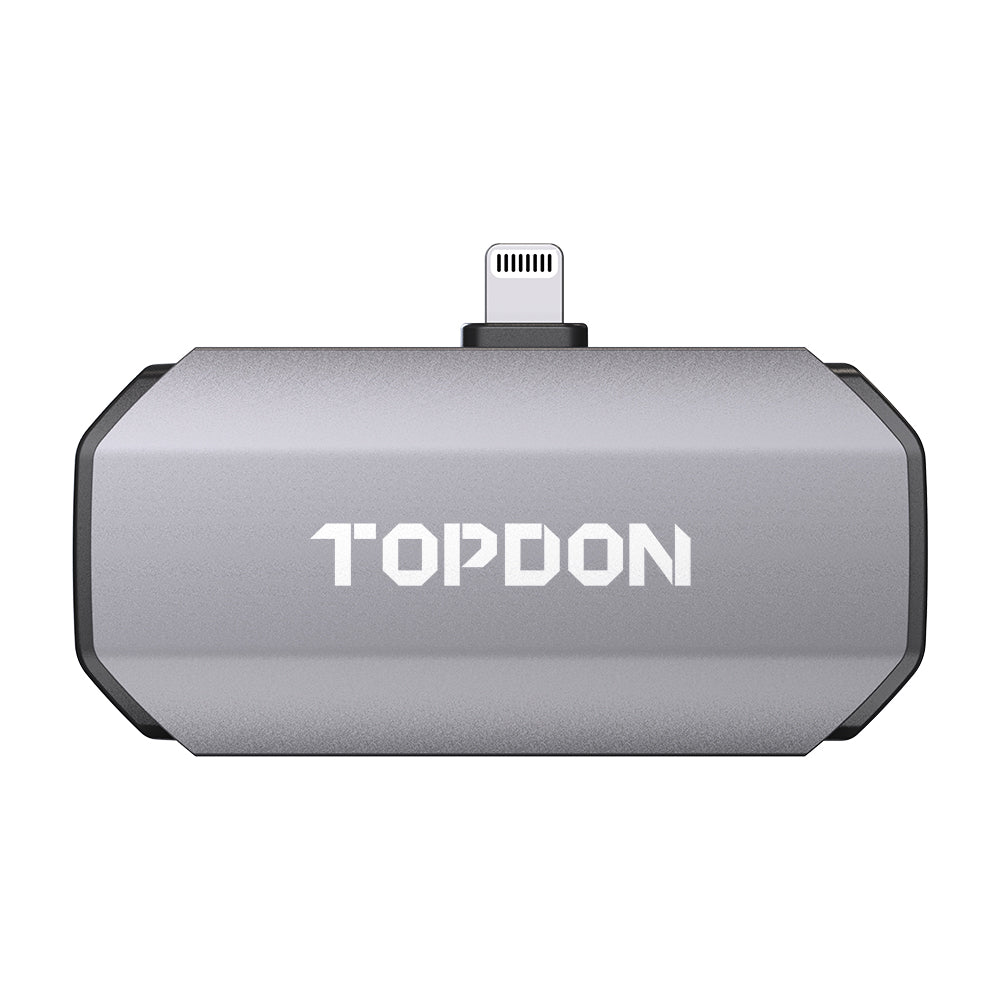

  • TOPDON TC002 Thermal Imaging Camera iOS/Apple - Back

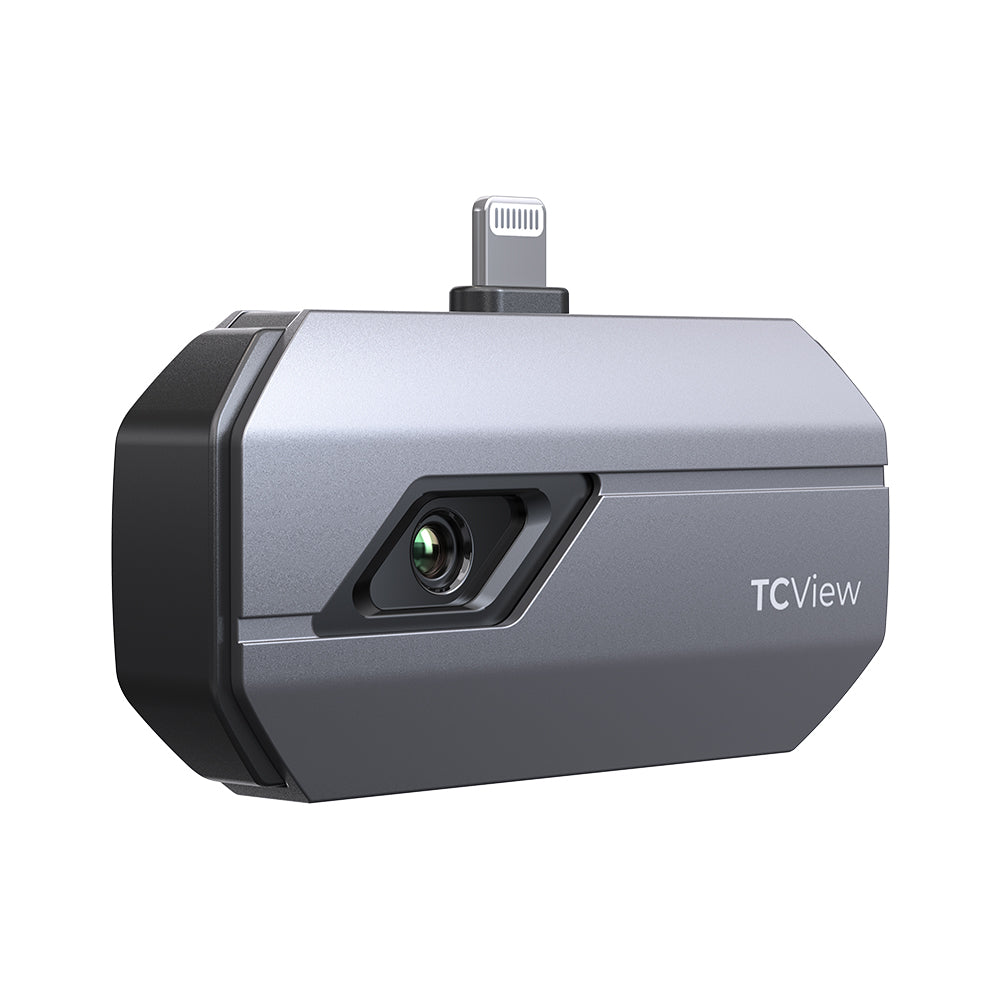

  • TOPDON TC002 Thermal Imaging Camera iOS/Apple - Side
  • TOPDON TC002 Thermal Imaging Camera iOS/Apple - Top

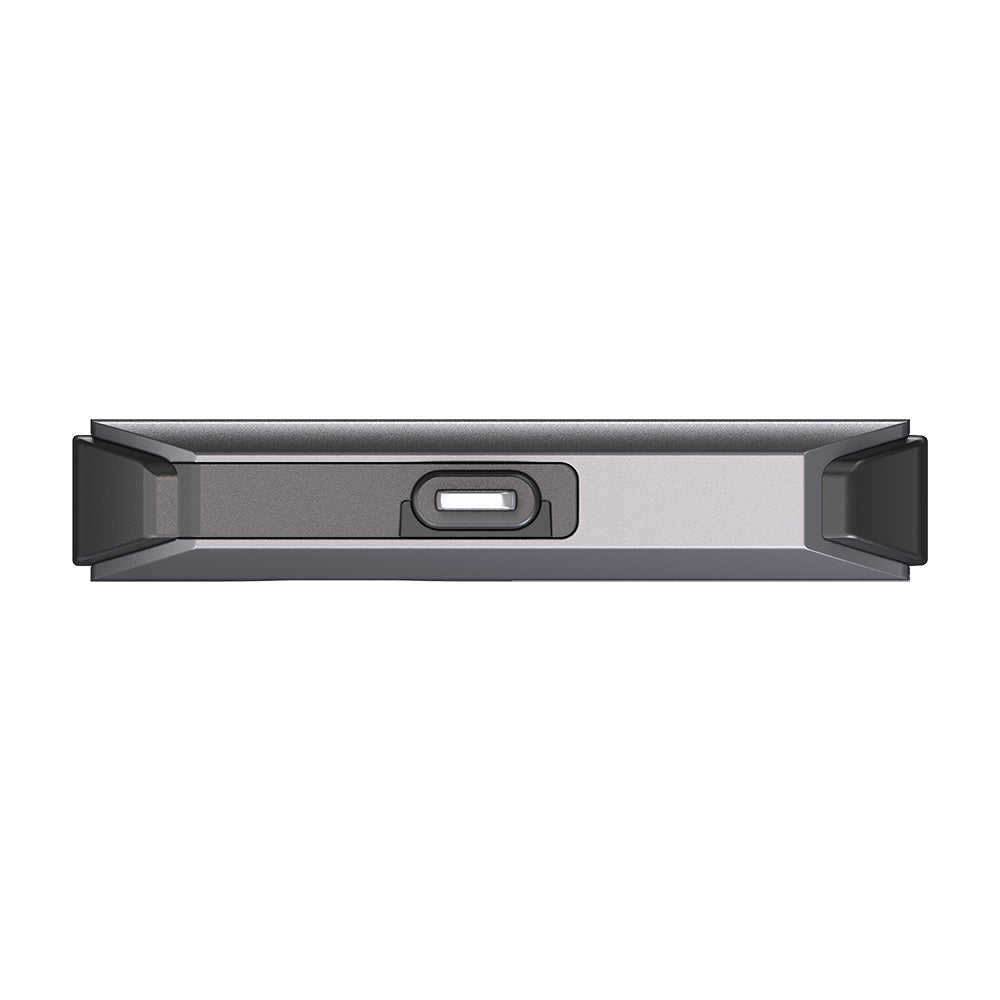

  • TOPDON TC002 Thermal Imaging Camera iOS/Apple - Bottom
Features
  • Unlimited Accuracy, Unlimited Clarity
  • Built for Mobility
  • Low Power Consumption, Longer Battery Life
  • Improved Temperature Range & Accuracy
  • Extensive Applications
  • Thermal Image with More Details
  • Adjustable Temperature Range
  • Intuitive & Graphical Waveform
Learn More
Warranty & Updates
  • 1 Year Warranty
  • WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
Hardware
System
Operating System
Battery Capacity
Display Screen
Operating Voltage
Charging Time
Battery Life
Storage
LED Flashlight
Imaging
Calibration Temperature Measurement Distance
Identification Distance
Recognition Distance
Detection Distance
Measurement Accuracy
Infrared Light Resolution
Focal Range
FOV
Spectral Range
NETD
Temperature Resolution
Frame Rate
AI Algorithm
Image Algorithm
Functions
Measurement Range
Professional Function
Digital Zoom
Image Modes
Measuring Modes
Video Recording
Video Transfer via USB
WIFI
PC-Based Analysis Software
Visible Light Camera Lens
Pseudo Color Bar
High/low temperature alarms
Automatic Power-off Time
Temperature Units
Other
Operating Temperature
Tripod Screw Hole
Drop, Impact, and Vibration
IP Rating
Certifications
Gross Weight (g）
Device Weight (g）
Package Size (mm)
Languages Supported
Updates

NA
iOS devices
NA
NA
5V
NA
NA
NA

0.2m~5m
0.1~50m
50~80m
80~320m
±2°C or ±2%
256x192
3.2mm
56°X42°
8 – 14μm
<40mK
0.1℃
25Hz

-20 to 550 °C (-4 to 1022℉)
Home
Thermal Imaging, Dual Fusion
Dot, line, plane
11 colors (iron red, white hot, black hot, arctic, rainbow, red hot, medical, jungle, golden red, shimmer, dark red) (customized mode)
Celsius, Fahrenheit

-10°C to +50°C
2.0m
NA
UN38.3/DGM/CE/FCC/RoHS/UKCA
220
30
140*102*46
13 languages (English, Chinese, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Dutch, Czech, Ukrainian)
Downloading from the official website, or downloading available updates from the app
Unlimited Accuracy, Unlimited Clarity

The TC002 boasts a high-resolution of 256 x 192 pixels, providing clear and detailed thermal images of your target. Its high accuracy and clarity make it perfect for objects where surface temperature is difficult to distinguish.

Built for Mobility

The TC002 is compact and lightweight, measuring 2.8 inches by 1.65 inches by 0.55 inches, and weighing just 30 grams. Its portable design makes it easy to pair with iPhones and iPads, and the rugged aluminum case provides protection against drops, ensuring you can monitor temperature anywhere, anytime.

Low Power Consumption, Longer Battery Life

• The TC002 connects to your iPhone or iPad and is powered by the device; eliminating the need for a separate power source.
• Its low power consumption of 0.35W ensures longer battery life, with 4-7 hours of usage on devices with a 3000-5000mAh battery.

Improved Temperature Range & Accuracy

The TC002 boasts a wide temperature range of -4°F to 1022°F (-20°C to 550°C), making it suitable for temperature readings on a variety of objects. It also boasts serious accuracy, with a maximum deviation of ±3.6°F (2°C) or 2% of the actual temperature, and a temperature measurement resolution of 0.1°F (0.1°C).

Extensive Applications

The TC002's precise temperature measurement capabilities make it an ideal tool for a variety of industries and applications. It allows for safe temperature readings from a distance; making it suitable for home inspectors, HVAC technicians, electricians, automotive technicians, and even farmers looking to monitor crops and livestock.

Thermal Image with More Details

• Three Temperature-Reading Dimensions:
With the TC002 App TopInfrared, users can manually select from three different dimensions to check temperature: Point, Line (with highest and lowest readings), and Surface (with highest and lowest readings).
• Multiple Color Palettes:
The TC002 offers 11 unique color palettes, allowing users to customize their temperature display to their preferred gradient colors.
• Image Enhancement:
Users can adjust the sharpness and contrast of the thermal image to achieve a customized view.

Adjustable Temperature Range

Featuring a DIY temperature range feature, the TC002 allows users to set maximum and minimum temperature limits. If the object temperature exceeds these limits, the camera will display corresponding color images, making it easier for users to understand and visualize the temperature of the target area.

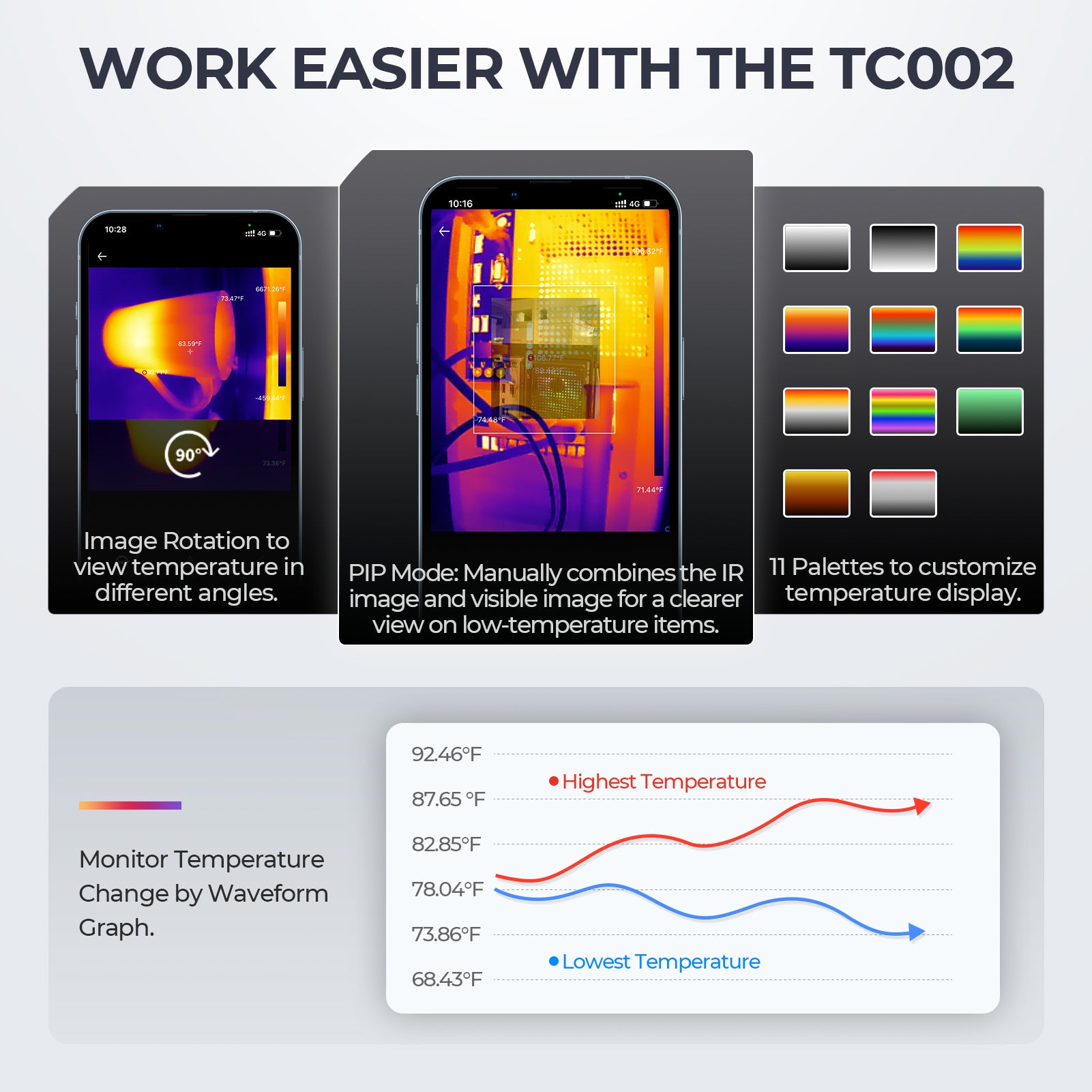

Intuitive & Graphical Waveform

The TC002 thermal camera can take continuous temperature readings and store the data in its accompanying app TopInfrared. This data can then be used to calculate the high, low, and average temperatures of objects within its field of view over a certain period of time; allowing users to visualize the data in the form of a waveform graph.

Hardware
System
NA
Operating System
iOS devices
Battery Capacity
NA
Display Screen
NA
Operating Voltage
5V
Charging Time
NA
Battery Life
NA
Storage
NA
LED Flashlight
Imaging
Calibration Temperature Measurement Distance
0.2m~5m
Identification Distance
0.1~50m
Recognition Distance
50~80m
Detection Distance
80~320m
Measurement Accuracy
±2°C or ±2%
Infrared Light Resolution
256x192
Focal Range
3.2mm
FOV
56°X42°
Spectral Range
8 – 14μm
NETD
<40mK
Temperature Resolution
0.1℃
Frame Rate
25Hz
AI Algorithm
Image Algorithm
Functions
Measurement Range
-20 to 550 °C (-4 to 1022℉)
Professional Function
Home
Digital Zoom
Image Modes
Thermal Imaging, Dual Fusion
Measuring Modes
Dot, line, plane
Video Recording
Video Transfer via USB
WIFI
PC-Based Analysis Software
Visible Light Camera Lens
Pseudo Color Bar
11 colors (iron red, white hot, black hot, arctic, rainbow, red hot, medical, jungle, golden red, shimmer, dark red) (customized mode)
High/low temperature alarms
Automatic Power-off Time
Temperature Units
Celsius, Fahrenheit
Other
Operating Temperature
-10°C to +50°C
Tripod Screw Hole
Drop, Impact, and Vibration
2.0m
IP Rating
NA
Certifications
UN38.3/DGM/CE/FCC/RoHS/UKCA
Gross Weight (g）
220
Device Weight (g）
30
Package Size (mm)
140*102*46
Languages Supported
13 languages (English, Chinese, Japanese, French, Spanish, Italian, Portuguese, German, Polish, Russian, Dutch, Czech, Ukrainian)
Updates
Downloading from the official website, or downloading available updates from the app

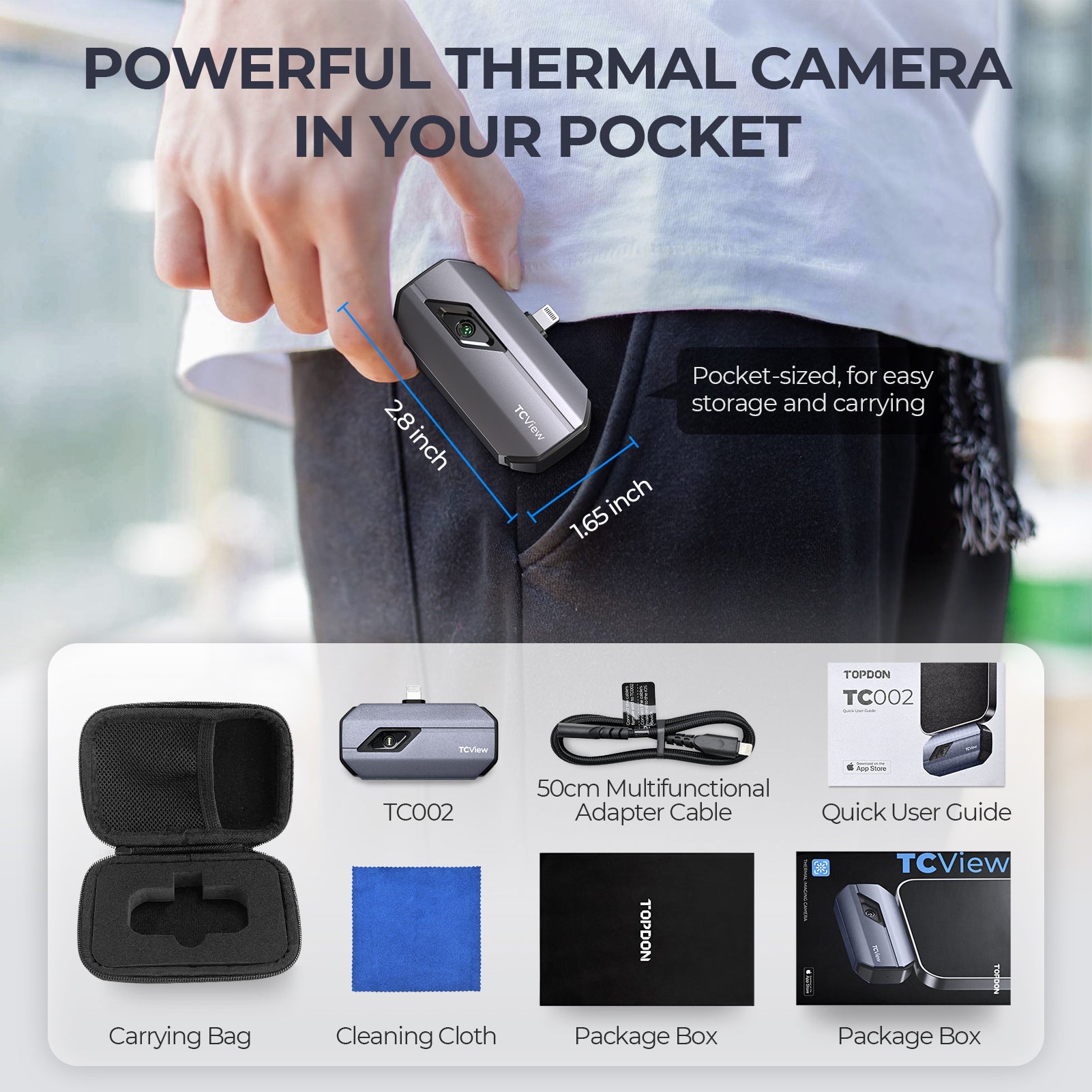

TC002 Thermal Camera
Carrying Bag
50cm Extension Cable
Cleaning Cloth
User Manual
4.0
Rated 4.0 out of 5 stars
Based on 1 review
Total 5 star reviews: 0 Total 4 star reviews: 1 Total 3 star reviews: 0 Total 2 star reviews: 0 Total 1 star reviews: 0
100%would recommend this product
Rating
Ratings
Write a Review (Opens in a new window)
1 review
  • George U.
    Verified Buyer
    2 weeks ago
    Rated 4 out of 5 stars
    Would recommend

    Works OK for DIY troubleshooting and hobby use. I was playing with it the night I received it and found I had left the block heater on for my motorhome. So it has already had a practical use. I got it to complement my toolbox of electronic devices. I think it will be useful. Price was right with good reviews compared to other brands. I was pleasantly surprised it includes adapter cables for both lightning and USB C ports as apple is changing to the latter. And it comes with a nice protective case. I did order the holder so can use either cable with current and future iphones and it makes a more manageable instrument. CON: (1) I cant find a comprehensive manual for this specific model. There are a lot of setup and calibration options but little information on WHY and WHEN I would use them. I will research on other internet sources. (2) I don't like giving the app access to my photos library. But It is a necessity if you want to save images. (3) The app startup procedure seems to require asking for photos access every time it is powered up, which is annoying, ( 4) The orientation of the connector requires cable management to prevent it from interfering when in the holder. Not a big problem.
